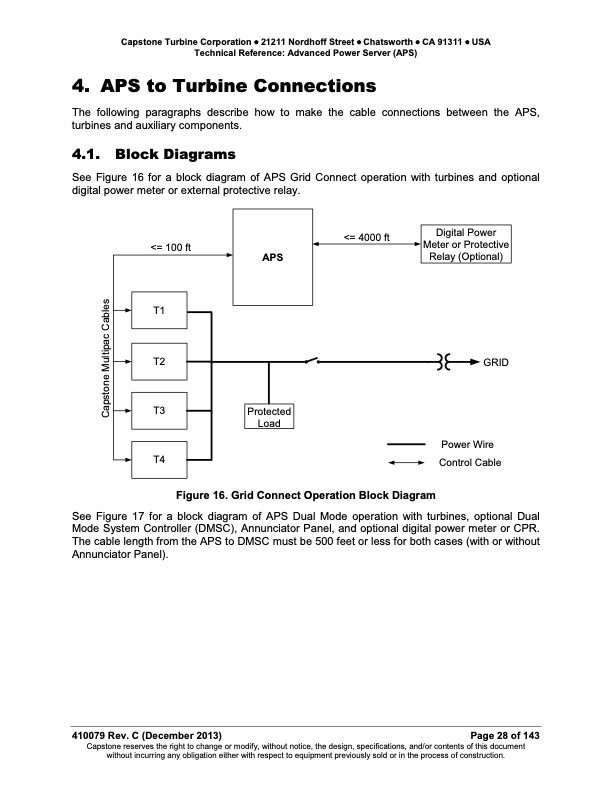

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Advanced Power Server (APS) 4. APS to Turbine Connections The following paragraphs describe how to make the cable connections between the APS, turbines and auxiliary components. 4.1. Block Diagrams See Figure 16 for a block diagram of APS Grid Connect operation with turbines and optional digital power meter or external protective relay. <= 100 ft T1 T2 T3 T4 See Figure 17 for a block diagram of APS Dual Mode operation with turbines, optional Dual Mode System Controller (DMSC), Annunciator Panel, and optional digital power meter or CPR. The cable length from the APS to DMSC must be 500 feet or less for both cases (with or without Annunciator Panel). APS <= 4000 ft GRID Power Wire Control Cable Figure 16. Grid Connect Operation Block Diagram 410079 Rev. C (December 2013) Page 28 of 143 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Digital Power Meter or Protective Relay (Optional) Protected Load Capstone Multipac CablesPDF Image | Technical Reference Advanced Power Server (APS)
