PDF Publication Title:
Text from PDF Page: 044

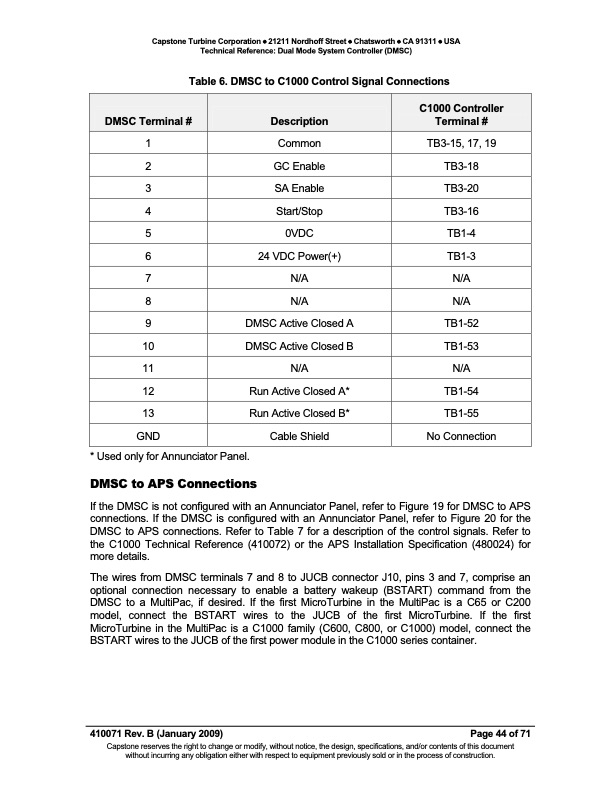

DMSC Terminal # 1 2 3 4 5 6 7 8 9 10 11 12 13 GND Common GC Enable SA Enable Start/Stop 0VDC 24 VDC Power(+) N/A N/A DMSC Active Closed A DMSC Active Closed B N/A Run Active Closed A* Run Active Closed B* Cable Shield TB3-15, 17, 19 TB3-18 TB3-20 TB3-16 TB1-4 TB1-3 N/A N/A TB1-52 TB1-53 N/A TB1-54 TB1-55 No Connection Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Dual Mode System Controller (DMSC) Table 6. DMSC to C1000 Control Signal Connections Description C1000 Controller Terminal # * Used only for Annunciator Panel. DMSC to APS Connections If the DMSC is not configured with an Annunciator Panel, refer to Figure 19 for DMSC to APS connections. If the DMSC is configured with an Annunciator Panel, refer to Figure 20 for the DMSC to APS connections. Refer to Table 7 for a description of the control signals. Refer to the C1000 Technical Reference (410072) or the APS Installation Specification (480024) for more details. The wires from DMSC terminals 7 and 8 to JUCB connector J10, pins 3 and 7, comprise an optional connection necessary to enable a battery wakeup (BSTART) command from the DMSC to a MultiPac, if desired. If the first MicroTurbine in the MultiPac is a C65 or C200 model, connect the BSTART wires to the JUCB of the first MicroTurbine. If the first MicroTurbine in the MultiPac is a C1000 family (C600, C800, or C1000) model, connect the BSTART wires to the JUCB of the first power module in the C1000 series container. 410071 Rev. B (January 2009) Page 44 of 71 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | TECH REF DMSC RB
PDF Search Title:
TECH REF DMSC RBOriginal File Name Searched:
410071B_Dual_Mode_System_Controller_DMSC_TR.pdfDIY PDF Search: Google It | Yahoo | Bing
