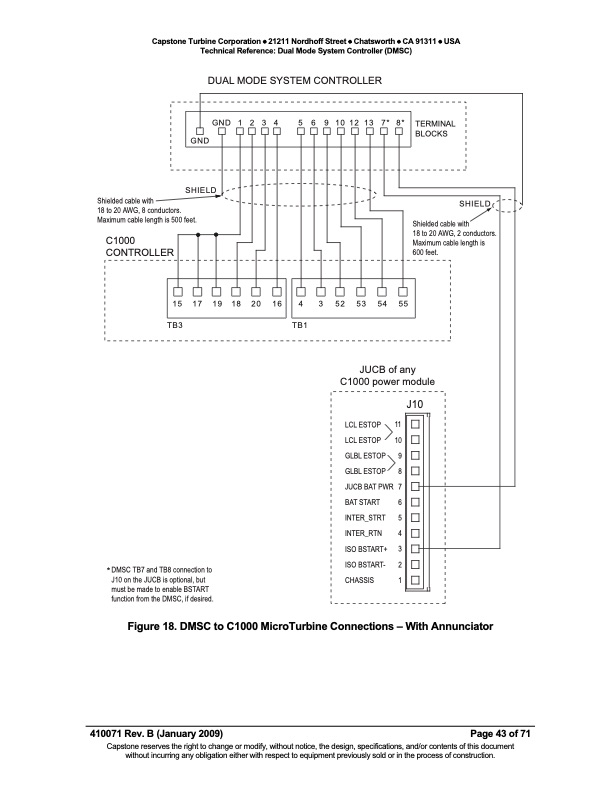

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Dual Mode System Controller (DMSC) SHIELD Shielded cable with 18 to 20 AWG, 8 conductors. Maximum cable length is 500 feet. C1000 CONTROLLER SHIELD Shielded cable with 18 to 20 AWG, 2 conductors. Maximum cable length is 600 feet. JUCB of any C1000 power module DUAL MODE SYSTEM CONTROLLER GND 1 2 3 4 5 6 9 10 12 13 7* 8* GND TERMINAL BLOCKS 15 17 19 18 20 16 TB3 TB1 4 3 52 53 54 55 J10 LCL ESTOP 11 LCL ESTOP 10 GLBL ESTOP 9 GLBL ESTOP 8 JUCB BAT PWR 7 BAT START 6 INTER_STRT 5 INTER_RTN 4 ISO BSTART+ 3 ISO BSTART- 2 CHASSIS 1 * DMSC TB7 and TB8 connection to J10 on the JUCB is optional, but must be made to enable BSTART function from the DMSC, if desired. Figure 18. DMSC to C1000 MicroTurbine Connections – With Annunciator 410071 Rev. B (January 2009) Page 43 of 71 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | TECH REF DMSC RB
