Text from PDF Page: 036

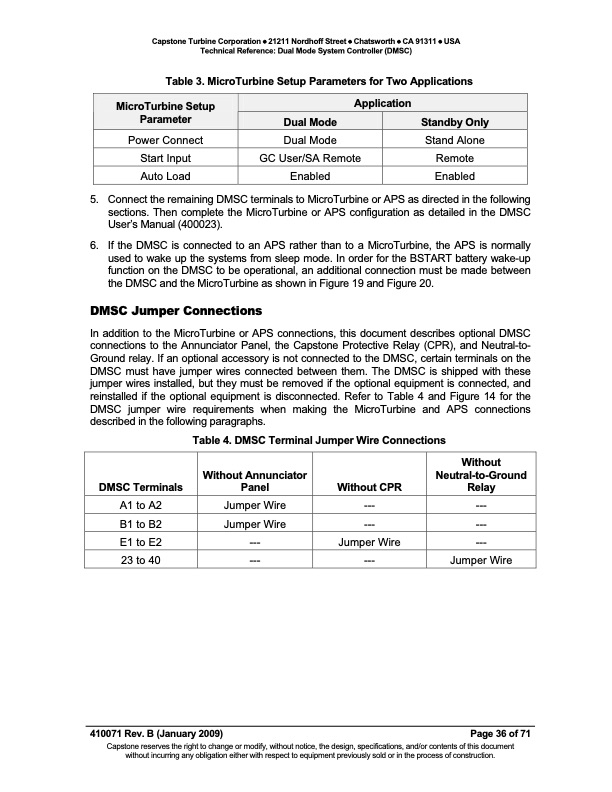

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Technical Reference: Dual Mode System Controller (DMSC) Table 3. MicroTurbine Setup Parameters for Two Applications MicroTurbine Setup Parameter Application Dual Mode Standby Only Power Connect Start Input Auto Load Dual Mode GC User/SA Remote Enabled Stand Alone Remote Enabled 5. Connect the remaining DMSC terminals to MicroTurbine or APS as directed in the following sections. Then complete the MicroTurbine or APS configuration as detailed in the DMSC User’s Manual (400023). 6. If the DMSC is connected to an APS rather than to a MicroTurbine, the APS is normally used to wake up the systems from sleep mode. In order for the BSTART battery wake-up function on the DMSC to be operational, an additional connection must be made between the DMSC and the MicroTurbine as shown in Figure 19 and Figure 20. DMSC Jumper Connections In addition to the MicroTurbine or APS connections, this document describes optional DMSC connections to the Annunciator Panel, the Capstone Protective Relay (CPR), and Neutral-to- Ground relay. If an optional accessory is not connected to the DMSC, certain terminals on the DMSC must have jumper wires connected between them. The DMSC is shipped with these jumper wires installed, but they must be removed if the optional equipment is connected, and reinstalled if the optional equipment is disconnected. Refer to Table 4 and Figure 14 for the DMSC jumper wire requirements when making the MicroTurbine and APS connections described in the following paragraphs. Table 4. DMSC Terminal Jumper Wire Connections DMSC Terminals Without Annunciator Panel Without CPR Without Neutral-to-Ground Relay A1 to A2 B1 to B2 E1 to E2 23 to 40 Jumper Wire Jumper Wire --- --- --- --- Jumper Wire --- --- --- --- Jumper Wire 410071 Rev. B (January 2009) Page 36 of 71 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | TECH REF DMSC RB
