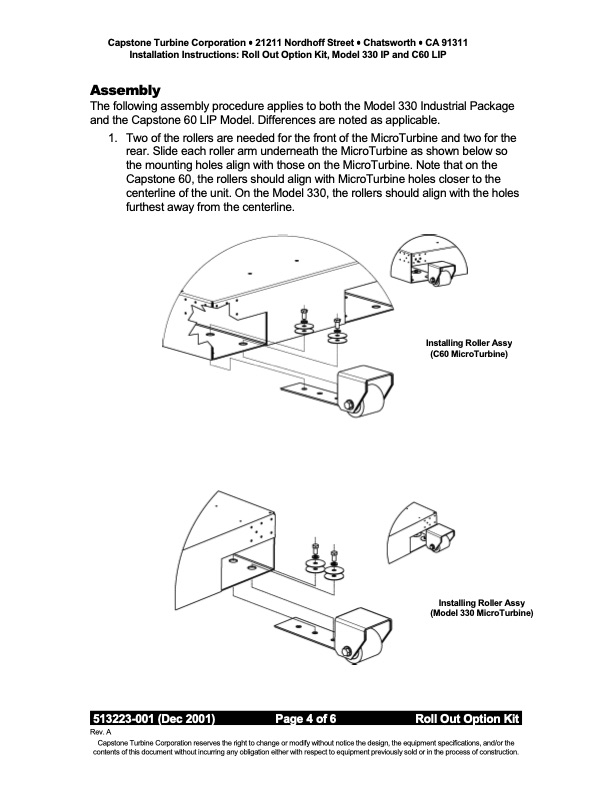

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 Installation Instructions: Roll Out Option Kit, Model 330 IP and C60 LIP Assembly The following assembly procedure applies to both the Model 330 Industrial Package and the Capstone 60 LIP Model. Differences are noted as applicable. 1. TwooftherollersareneededforthefrontoftheMicroTurbineandtwoforthe rear. Slide each roller arm underneath the MicroTurbine as shown below so the mounting holes align with those on the MicroTurbine. Note that on the Capstone 60, the rollers should align with MicroTurbine holes closer to the centerline of the unit. On the Model 330, the rollers should align with the holes furthest away from the centerline. 513223-001 (Dec 2001) Page 4 of 6 Roll Out Option Kit. Rev. A Capstone Turbine Corporation reserves the right to change or modify without notice the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Installing Roller Assy (C60 MicroTurbine) Installing Roller Assy (Model 330 MicroTurbine)PDF Image | Installation Instructions Roll Out Option Kit for Model 330 Industrial Package and Capstone 60 LIP MicroTurbines
