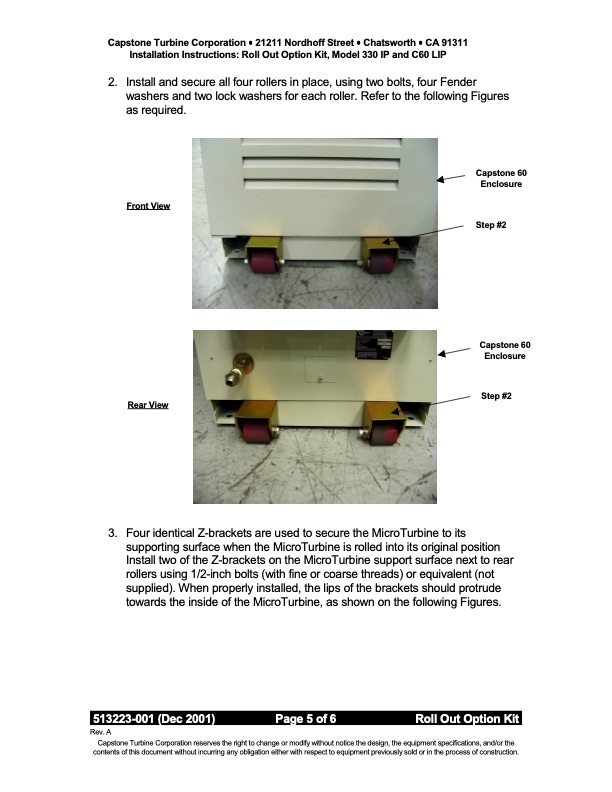

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 Installation Instructions: Roll Out Option Kit, Model 330 IP and C60 LIP 2. Installandsecureallfourrollersinplace,usingtwobolts,fourFender washers and two lock washers for each roller. Refer to the following Figures as required. Capstone 60 Enclosure Front View Step #2 Capstone 60 Enclosure Rear View Step #2 3. FouridenticalZ-bracketsareusedtosecuretheMicroTurbinetoits supporting surface when the MicroTurbine is rolled into its original position Install two of the Z-brackets on the MicroTurbine support surface next to rear rollers using 1/2-inch bolts (with fine or coarse threads) or equivalent (not supplied). When properly installed, the lips of the brackets should protrude towards the inside of the MicroTurbine, as shown on the following Figures. 513223-001 (Dec 2001) Page 5 of 6 Roll Out Option Kit. Rev. A Capstone Turbine Corporation reserves the right to change or modify without notice the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Installation Instructions Roll Out Option Kit for Model 330 Industrial Package and Capstone 60 LIP MicroTurbines
