PDF Publication Title:
Text from PDF Page: 025

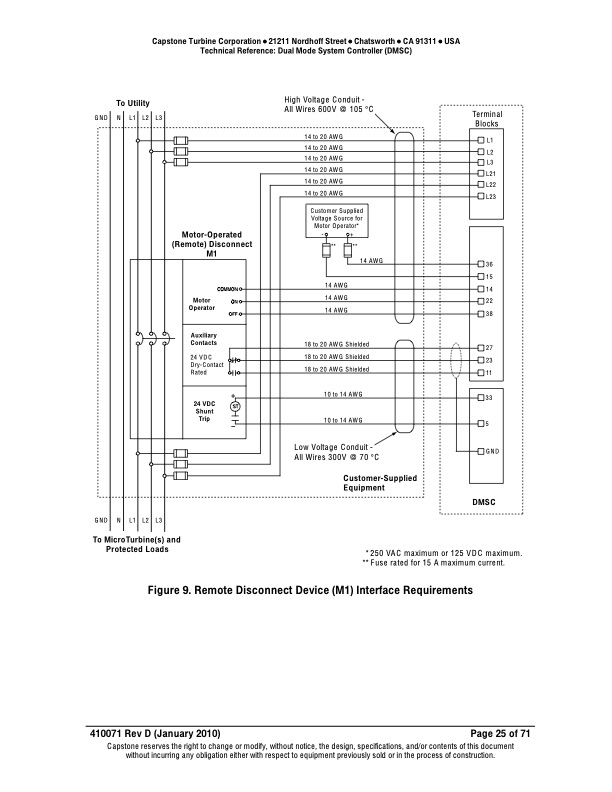

To Utility GND N L1L2L3 Terminal Blocks Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Dual Mode System Controller (DMSC) High Voltage Conduit - All Wires 600V @ 105 °C 14 to 20 AWG 14 to 20 AWG 14 to 20 AWG 14 to 20 AWG L1 L2 L3 L21 L22 L23 Motor-Operated (Remote) Disconnect M1 Motor Operator 14 to 20 AWG 14 to 20 AWG Customer Supplied Voltage Source for Motor Operator* -+ ** ** 14 AWG 14 AWG 14 AWG 14 AWG 36 15 14 22 27 23 11 Auxiliary Contacts 24 VDC Dry-Contact Rated 18 to 20 AWG Shielded 18 to 20 AWG Shielded 18 to 20 AWG Shielded 24 VDC Shunt Trip 10 to 14 AWG 10 to 14 AWG Low Voltage Conduit - All Wires 300V @ 70 °C Customer-Supplied Equipment 33 5 GND GND N L1L2L3 To MicroTurbine(s) and Protected Loads * 250 VAC maximum or 125 VDC maximum. ** Fuse rated for 15 A maximum current. Figure 9. Remote Disconnect Device (M1) Interface Requirements DMSC 410071 Rev D (January 2010) Page 25 of 71 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. 38PDF Image | Dual Mode System Controller DMSC
PDF Search Title:
Dual Mode System Controller DMSCOriginal File Name Searched:
410071D_Dual_Mode_System_Controller_DMSC_TR.pdfDIY PDF Search: Google It | Yahoo | Bing
