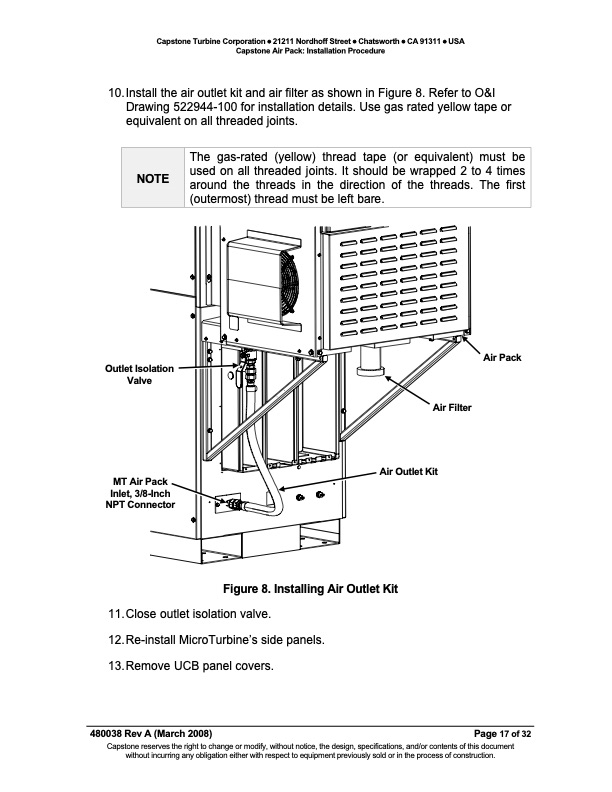

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Air Pack: Installation Procedure 10.Install the air outlet kit and air filter as shown in Figure 8. Refer to O&I Drawing 522944-100 for installation details. Use gas rated yellow tape or equivalent on all threaded joints. The gas-rated (yellow) thread tape (or equivalent) must be used on all threaded joints. It should be wrapped 2 to 4 times around the threads in the direction of the threads. The first (outermost) thread must be left bare. NOTE Outlet Isolation Valve MT Air Pack Inlet, 3/8-Inch NPT Connector Air Pack Air Filter Air Outlet Kit Figure 8. Installing Air Outlet Kit 11.Close outlet isolation valve. 12.Re-install MicroTurbine’s side panels. 13.Remove UCB panel covers. 480038 Rev A (March 2008) Page 17 of 32 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE AIR PACK INSTALLATION PROCEDURE
