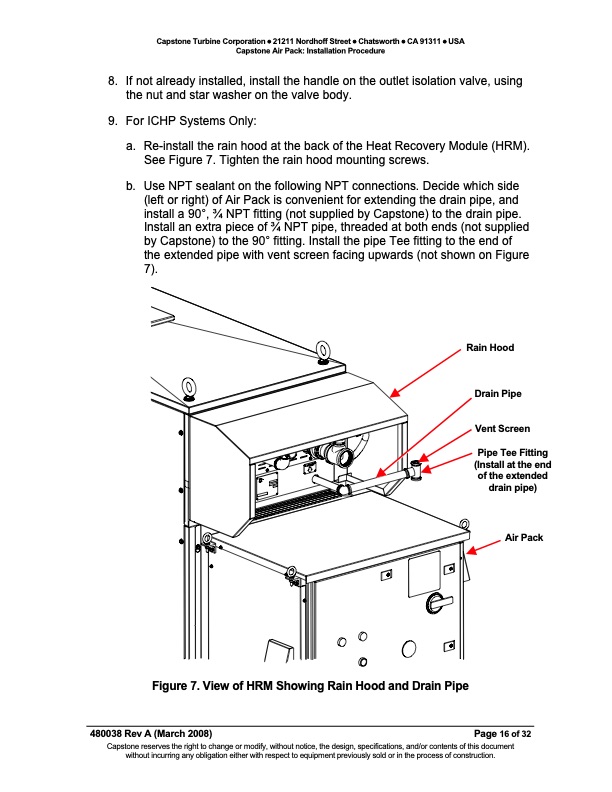

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Air Pack: Installation Procedure 8. Ifnotalreadyinstalled,installthehandleontheoutletisolationvalve,using the nut and star washer on the valve body. 9. ForICHPSystemsOnly: a. Re-install the rain hood at the back of the Heat Recovery Module (HRM). See Figure 7. Tighten the rain hood mounting screws. b. UseNPTsealantonthefollowingNPTconnections.Decidewhichside (left or right) of Air Pack is convenient for extending the drain pipe, and install a 90°, 3⁄4 NPT fitting (not supplied by Capstone) to the drain pipe. Install an extra piece of 3⁄4 NPT pipe, threaded at both ends (not supplied by Capstone) to the 90° fitting. Install the pipe Tee fitting to the end of the extended pipe with vent screen facing upwards (not shown on Figure 7). Rain Hood Drain Pipe Vent Screen Pipe Tee Fitting (Install at the end of the extended drain pipe) Air Pack Figure 7. View of HRM Showing Rain Hood and Drain Pipe 480038 Rev A (March 2008) Page 16 of 32 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE AIR PACK INSTALLATION PROCEDURE
