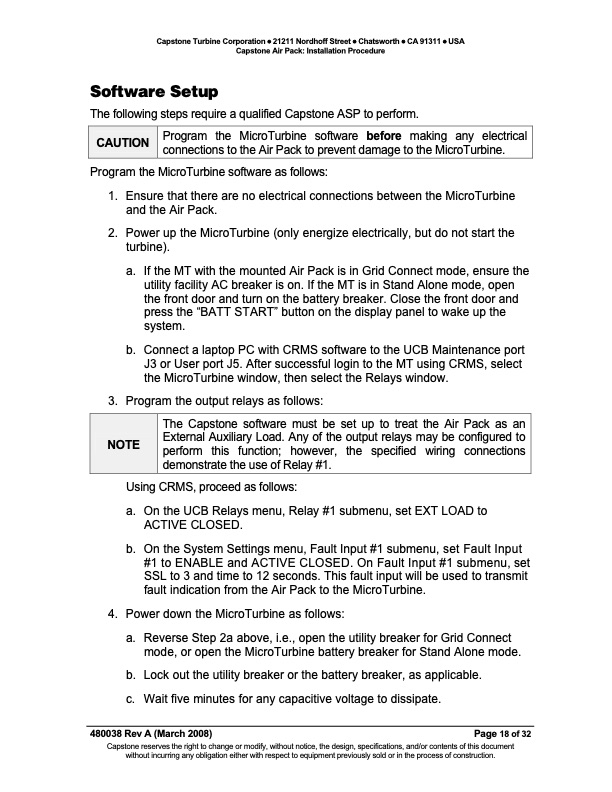

Text from PDF Page: 018
Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Air Pack: Installation Procedure Software Setup The following steps require a qualified Capstone ASP to perform. Program the MicroTurbine software before making any electrical connections to the Air Pack to prevent damage to the MicroTurbine. Program the MicroTurbine software as follows: 1. EnsurethattherearenoelectricalconnectionsbetweentheMicroTurbine and the Air Pack. 2. PoweruptheMicroTurbine(onlyenergizeelectrically,butdonotstartthe turbine). a. If the MT with the mounted Air Pack is in Grid Connect mode, ensure the utility facility AC breaker is on. If the MT is in Stand Alone mode, open the front door and turn on the battery breaker. Close the front door and press the “BATT START” button on the display panel to wake up the system. b. ConnectalaptopPCwithCRMSsoftwaretotheUCBMaintenanceport J3 or User port J5. After successful login to the MT using CRMS, select the MicroTurbine window, then select the Relays window. 3. Programtheoutputrelaysasfollows: Using CRMS, proceed as follows: a. OntheUCBRelaysmenu,Relay#1submenu,setEXTLOADto ACTIVE CLOSED. b. On the System Settings menu, Fault Input #1 submenu, set Fault Input #1 to ENABLE and ACTIVE CLOSED. On Fault Input #1 submenu, set SSL to 3 and time to 12 seconds. This fault input will be used to transmit fault indication from the Air Pack to the MicroTurbine. 4. PowerdowntheMicroTurbineasfollows: a. ReverseStep2aabove,i.e.,opentheutilitybreakerforGridConnect mode, or open the MicroTurbine battery breaker for Stand Alone mode. b. Lockouttheutilitybreakerorthebatterybreaker,asapplicable. c. Wait five minutes for any capacitive voltage to dissipate. 480038 Rev A (March 2008) Page 18 of 32 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. CAUTION NOTE The Capstone software must be set up to treat the Air Pack as an External Auxiliary Load. Any of the output relays may be configured to perform this function; however, the specified wiring connections demonstrate the use of Relay #1.PDF Image | CAPSTONE AIR PACK INSTALLATION PROCEDURE
