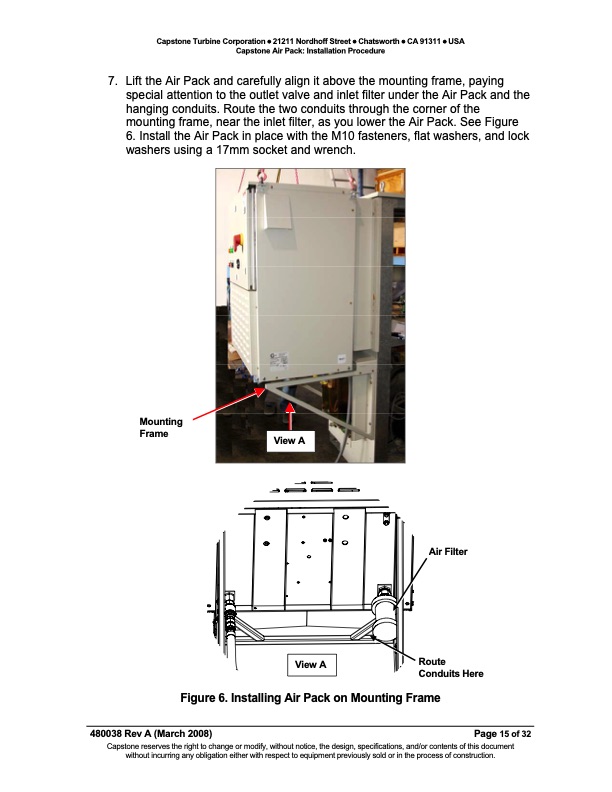

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Air Pack: Installation Procedure 7. LifttheAirPackandcarefullyalignitabovethemountingframe,paying special attention to the outlet valve and inlet filter under the Air Pack and the hanging conduits. Route the two conduits through the corner of the mounting frame, near the inlet filter, as you lower the Air Pack. See Figure 6. Install the Air Pack in place with the M10 fasteners, flat washers, and lock washers using a 17mm socket and wrench. Mounting Frame View A View A Air Filter Route Conduits Here Figure 6. Installing Air Pack on Mounting Frame 480038 Rev A (March 2008) Page 15 of 32 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE AIR PACK INSTALLATION PROCEDURE
