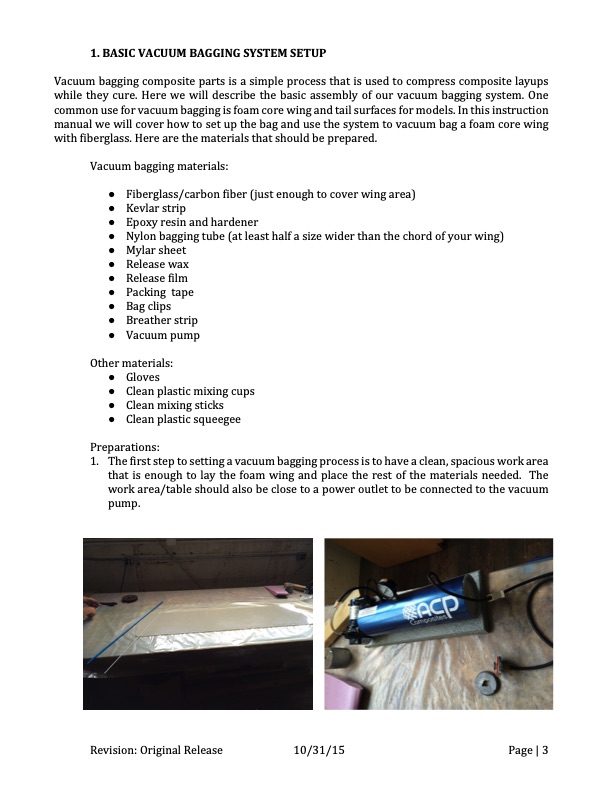

1. BASIC VACUUM BAGGING SYSTEM SETUP Vacuum bagging composite parts is a simple process that is used to compress composite layups while they cure. Here we will describe the basic assembly of our vacuum bagging system. One common use for vacuum bagging is foam core wing and tail surfaces for models. In this instruction manual we will cover how to set up the bag and use the system to vacuum bag a foam core wing with fiberglass. Here are the materials that should be prepared. Vacuum bagging materials: ● Fiberglass/carbon fiber (just enough to cover wing area) ● Kevlar strip ● Epoxy resin and hardener ● Nylon bagging tube (at least half a size wider than the chord of your wing) ● Mylar sheet ● Release wax ● Release film ● Packing tape ● Bag clips ● Breather strip ● Vacuum pump Other materials: ● Gloves ● Clean plastic mixing cups ● Clean mixing sticks ● Clean plastic squeegee Preparations: 1. The first step to setting a vacuum bagging process is to have a clean, spacious work area that is enough to lay the foam wing and place the rest of the materials needed. The work area/table should also be close to a power outlet to be connected to the vacuum pump. Revision: Original Release 10/31/15 Page | 3PDF Image | Vacuum Bagging Wings Instruction Manual Purdue Univ
