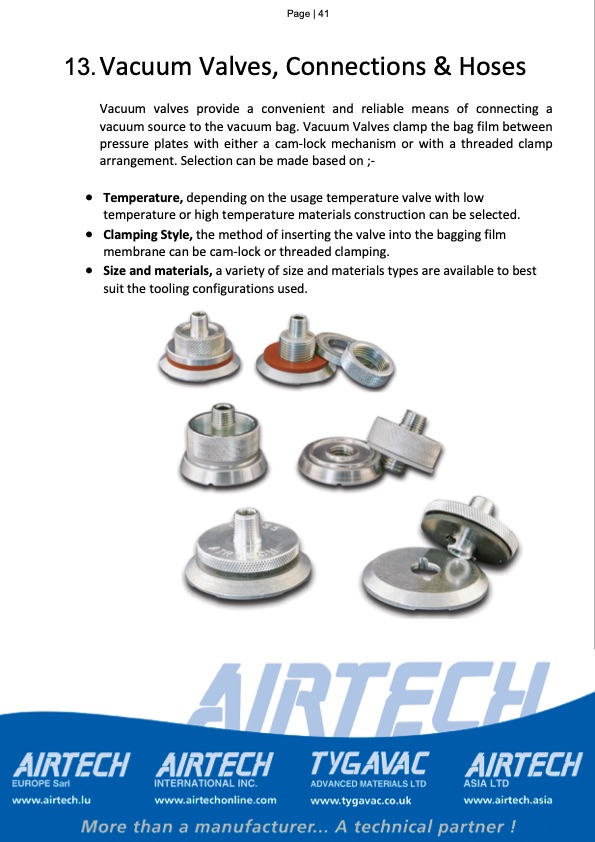

Page | 41 Vacuum Bagging for Resin Infusion 13.Vacuum Valves, Connections & Hoses Vacuum valves provide a convenient and reliable means of connecting a vacuum source to the vacuum bag. Vacuum Valves clamp the bag film between pressure plates with either a cam-lock mechanism or with a threaded clamp arrangement. Selection can be made based on ;- • Temperature, depending on the usage temperature valve with low temperature or high temperature materials construction can be selected. • Clamping Style, the method of inserting the valve into the bagging film membrane can be cam-lock or threaded clamping. • Size and materials, a variety of size and materials types are available to best suit the tooling configurations used.PDF Image | Vacuum Bagging for Resin Infusion
