PDF Publication Title:
Text from PDF Page: 040

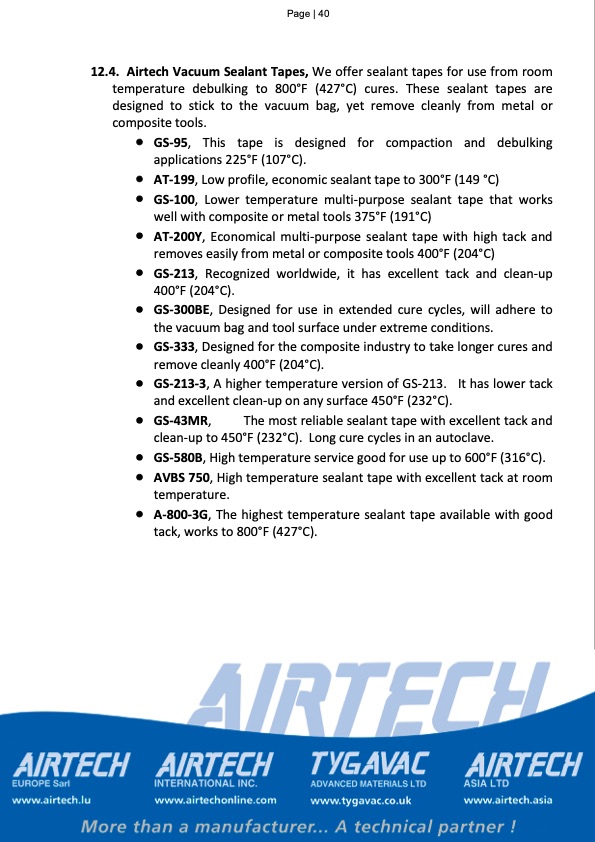

Page | 40 Vacuum Bagging for Resin Infusion 12.4. Airtech Vacuum Sealant Tapes, We offer sealant tapes for use from room temperature debulking to 800°F (427°C) cures. These sealant tapes are designed to stick to the vacuum bag, yet remove cleanly from metal or composite tools. • GS-95, This tape is designed for compaction and debulking applications 225°F (107°C). • AT-199, Low profile, economic sealant tape to 300°F (149 °C) • GS-100, Lower temperature multi-purpose sealant tape that works well with composite or metal tools 375°F (191°C) • AT-200Y, Economical multi-purpose sealant tape with high tack and removes easily from metal or composite tools 400°F (204°C) • GS-213, Recognized worldwide, it has excellent tack and clean-up 400°F (204°C). • GS-300BE, Designed for use in extended cure cycles, will adhere to the vacuum bag and tool surface under extreme conditions. • GS-333, Designed for the composite industry to take longer cures and remove cleanly 400°F (204°C). • GS-213-3, A higher temperature version of GS-213. It has lower tack and excellent clean-up on any surface 450°F (232°C). • GS-43MR, The most reliable sealant tape with excellent tack and clean-up to 450°F (232°C). Long cure cycles in an autoclave. • GS-580B, High temperature service good for use up to 600°F (316°C). • AVBS 750, High temperature sealant tape with excellent tack at room temperature. • A-800-3G, The highest temperature sealant tape available with good tack, works to 800°F (427°C).PDF Image | Vacuum Bagging for Resin Infusion
PDF Search Title:
Vacuum Bagging for Resin InfusionOriginal File Name Searched:
Vacuum-Bagging-How-to.pdfDIY PDF Search: Google It | Yahoo | Bing
