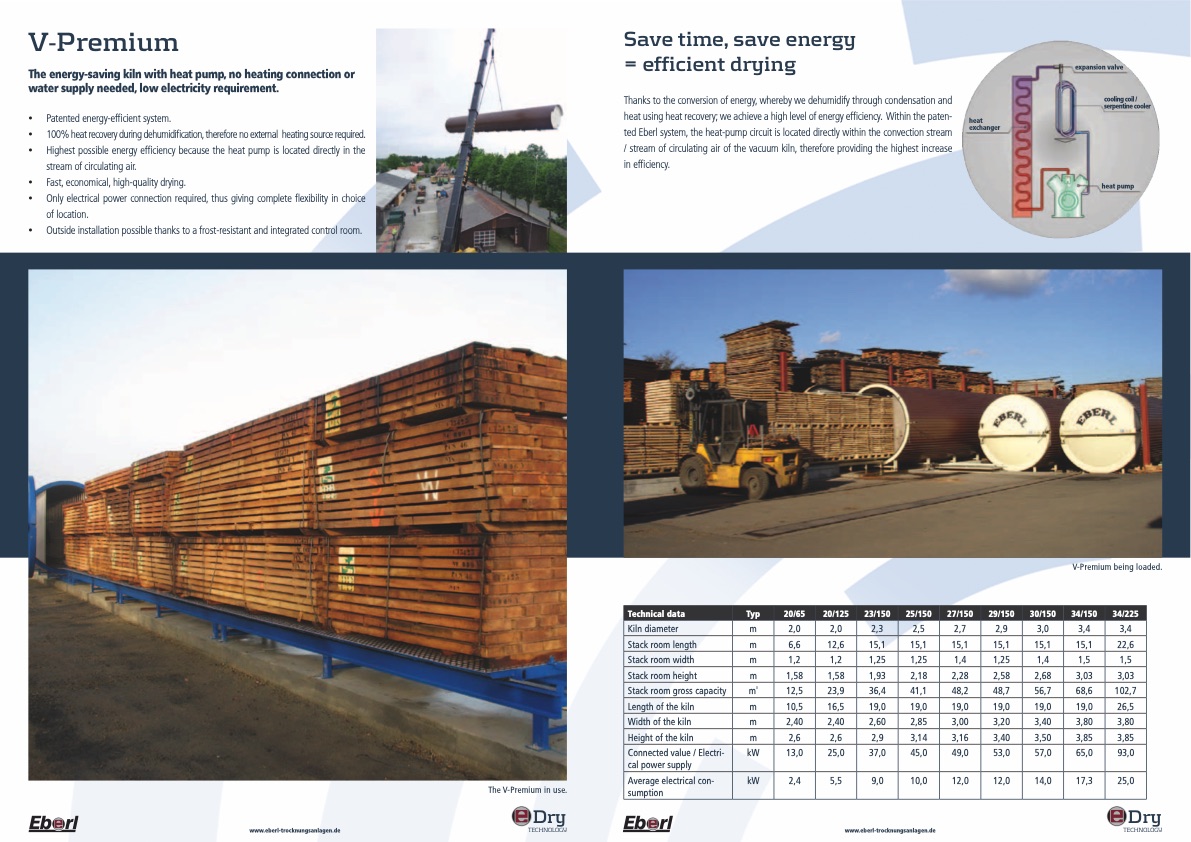

V-Premium The energy-saving kiln with heat pump, no heating connection or water supply needed, low electricity requirement. Save time, save energy = efficient drying Thanks to the conversion of energy, whereby we dehumidify through condensation and expansion valve cooling coil / serpentine cooler heat pump • Patented energy-efficient system. heat using heat recovery; we achieve a high level of energy efficiency. Within the paten- heat • 100% heat recovery during dehumidification, therefore no external heating source required. • Highest possible energy efficiency because the heat pump is located directly in the stream of circulating air. • Fast, economical, high-quality drying. • Only electrical power connection required, thus giving complete flexibility in choice of location. • Outside installation possible thanks to a frost-resistant and integrated control room. ted Eberl system, the heat-pump circuit is located directly within the convection stream / stream of circulating air of the vacuum kiln, therefore providing the highest increase in efficiency. exchanger Technical data Typ 20/65 20/125 23/150 25/150 27/150 29/150 30/150 34/150 34/225 Kiln diameter Stack room length Stack room width Stack room height Stack room gross capacity Length of the kiln Width of the kiln Height of the kiln Connected value / Electri- cal power supply Average electrical con- sumption m 2,0 m 6,6 m 1,2 m 1,58 m3 12,5 m 10,5 m 2,40 m 2,6 kW 13,0 kW 2,4 2,0 2,3 12,6 15,1 1,2 1,25 1,58 1,93 23,9 36,4 16,5 19,0 2,40 2,60 2,6 2,9 25,0 37,0 5,5 9,0 2,5 2,7 2,9 15,1 15,1 15,1 1,25 1,4 1,25 2,18 2,28 2,58 41,1 48,2 48,7 19,0 19,0 19,0 2,85 3,00 3,20 3,14 3,16 3,40 45,0 49,0 53,0 10,0 12,0 12,0 V-Premium being loaded. 3,0 3,4 3,4 15,1 15,1 22,6 1,4 1,5 1,5 2,68 3,03 3,03 56,7 68,6 102,7 19,0 19,0 26,5 3,40 3,80 3,80 3,50 3,85 3,85 EBERL The V-Premium in use. Dry EBERL 57,0 65,0 93,0 14,0 17,3 25,0 Dry www.eberl-trocknungsanlagen.de TECHNOLOGY www.eberl-trocknungsanlagen.de TECHNOLOGYPDF Image | The vacuum dry kiln
