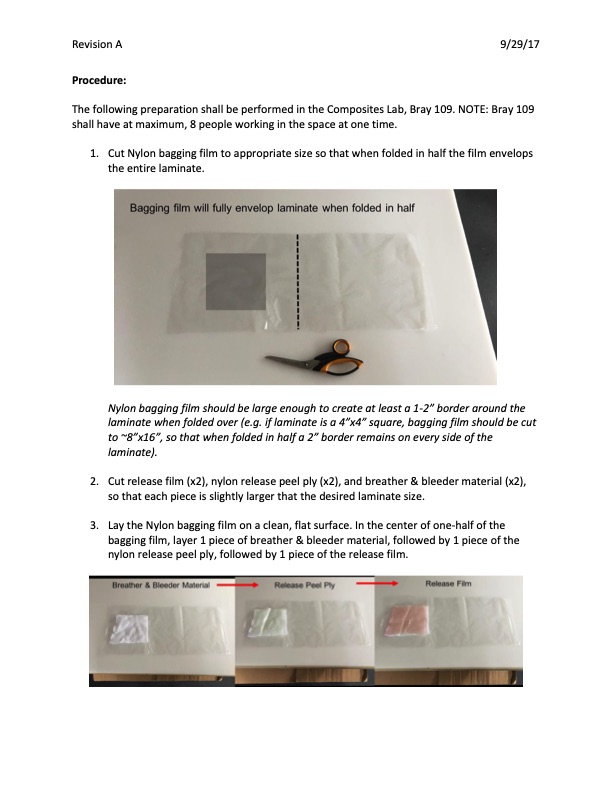

Revision A 9/29/17 Procedure: The following preparation shall be performed in the Composites Lab, Bray 109. NOTE: Bray 109 shall have at maximum, 8 people working in the space at one time. 1. Cut Nylon bagging film to appropriate size so that when folded in half the film envelops the entire laminate. Nylon bagging film should be large enough to create at least a 1-2” border around the laminate when folded over (e.g. if laminate is a 4”x4” square, bagging film should be cut to ~8”x16”, so that when folded in half a 2” border remains on every side of the laminate). 2. Cut release film (x2), nylon release peel ply (x2), and breather & bleeder material (x2), so that each piece is slightly larger that the desired laminate size. 3. Lay the Nylon bagging film on a clean, flat surface. In the center of one-half of the bagging film, layer 1 piece of breather & bleeder material, followed by 1 piece of the nylon release peel ply, followed by 1 piece of the release film.PDF Image | Laminate Vacuum Bagging Procedure
