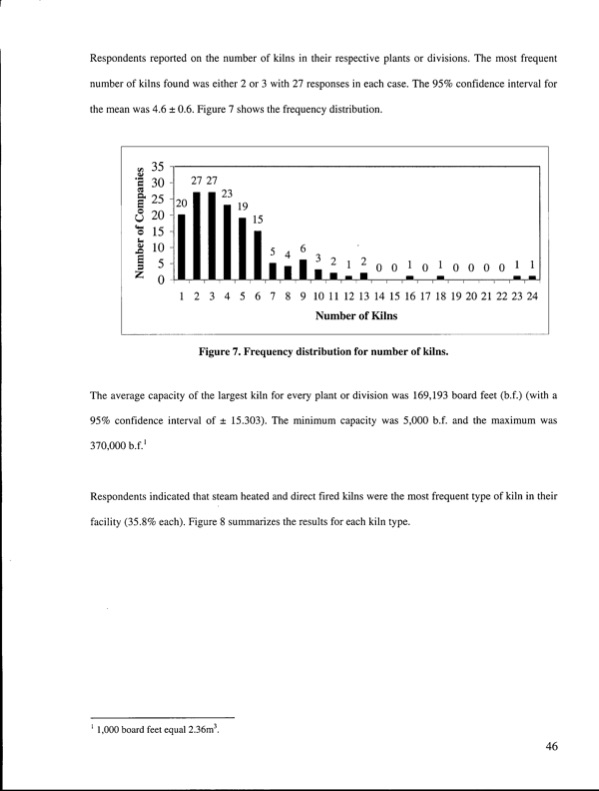

Respondents reported on the number of kilns in their respective plants or divisions. The most frequent number of kilns found was either 2 or 3 with 27 responses in each case. The 95% confidence interval for the mean was 4.6 ± 0.6. Figure 7 shows the frequency distribution. 1 2 3 4 5 6 7 8 9 101112131415161718192021222324 Number of Kilns Figure 7. Frequency distribution for number of kilns. The average capacity of the largest kiln for every plant or division was 169,193 board feet (b.f.) (with a 95% confidence interval of ± 15.303). The minimum capacity was 5,000 b.f. and the maximum was 370,000 b.f.1 Respondents indicated that steam heated and direct fired kilns were the most frequent type of kiln in their facility (35.8% each). Figure 8 summarizes the results for each kiln type. 1 1,000 board feet equal 2.36m3. 46PDF Image | KILN DRYING PROBLEMS AND ISSUES IN CANADA
