Text from PDF Page: 030

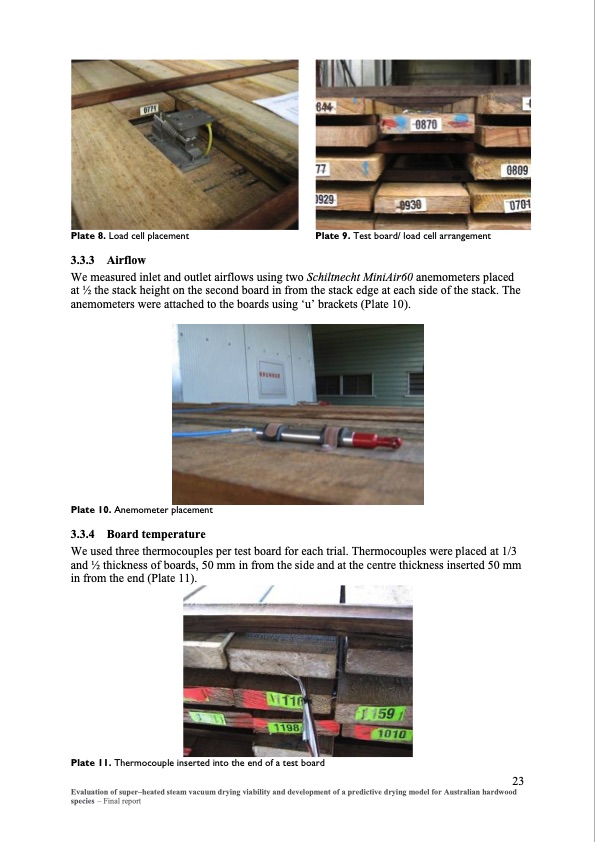

Plate 8. Load cell placement Plate 9. Test board/ load cell arrangement 3.3.3 Airflow We measured inlet and outlet airflows using two Schiltnecht MiniAir60 anemometers placed at 1⁄2 the stack height on the second board in from the stack edge at each side of the stack. The anemometers were attached to the boards using ‘u’ brackets (Plate 10). Plate 10. Anemometer placement 3.3.4 Board temperature We used three thermocouples per test board for each trial. Thermocouples were placed at 1/3 and 1⁄2 thickness of boards, 50 mm in from the side and at the centre thickness inserted 50 mm in from the end (Plate 11). Plate 11. Thermocouple inserted into the end of a test board 23 Evaluation of super–heated steam vacuum drying viability and development of a predictive drying model for Australian hardwood species – Final report
