Text from PDF Page: 006

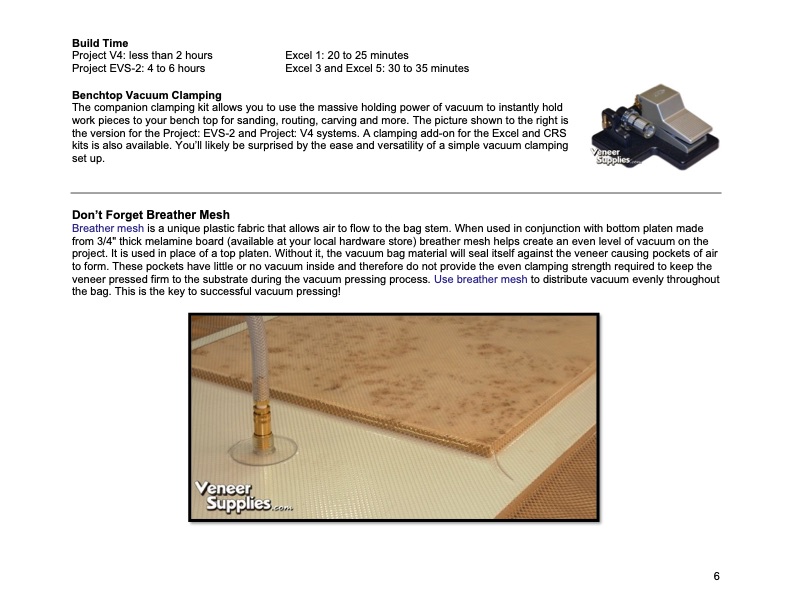

Build Time Project V4: less than 2 hours Excel 1: 20 to 25 minutes Project EVS-2: 4 to 6 hours Excel 3 and Excel 5: 30 to 35 minutes Benchtop Vacuum Clamping The companion clamping kit allows you to use the massive holding power of vacuum to instantly hold work pieces to your bench top for sanding, routing, carving and more. The picture shown to the right is the version for the Project: EVS-2 and Project: V4 systems. A clamping add-on for the Excel and CRS kits is also available. You’ll likely be surprised by the ease and versatility of a simple vacuum clamping set up. Don’t Forget Breather Mesh Breather mesh is a unique plastic fabric that allows air to flow to the bag stem. When used in conjunction with bottom platen made from 3/4" thick melamine board (available at your local hardware store) breather mesh helps create an even level of vacuum on the project. It is used in place of a top platen. Without it, the vacuum bag material will seal itself against the veneer causing pockets of air to form. These pockets have little or no vacuum inside and therefore do not provide the even clamping strength required to keep the veneer pressed firm to the substrate during the vacuum pressing process. Use breather mesh to distribute vacuum evenly throughout the bag. This is the key to successful vacuum pressing! 6PDF Image | Composite Curing and Vacuum Bagging Ovens and Controls for Aerospace
