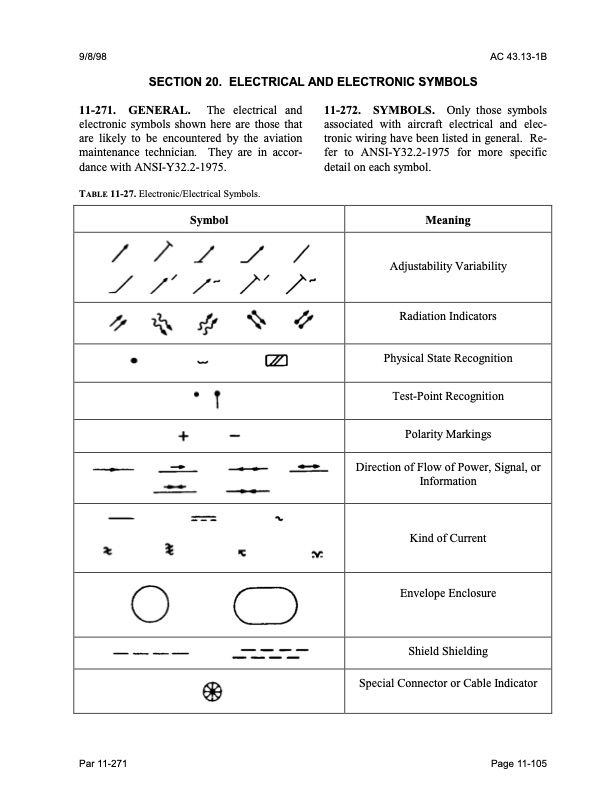

9/8/98 AC 43.13-1B SECTION 20. ELECTRICAL AND ELECTRONIC SYMBOLS 11-271. GENERAL. The electrical and electronic symbols shown here are those that are likely to be encountered by the aviation maintenance technician. They are in accor- dance with ANSI-Y32.2-1975. TABLE 11-27. Electronic/Electrical Symbols. Symbol 11-272. SYMBOLS. Only those symbols associated with aircraft electrical and elec- tronic wiring have been listed in general. Re- fer to ANSI-Y32.2-1975 for more specific detail on each symbol. Meaning Physical State Recognition Test-Point Recognition Polarity Markings Adjustability Variability Radiation Indicators Direction of Flow of Power, Signal, or Information Kind of Current Envelope Enclosure Shield Shielding Special Connector or Cable Indicator Par 11-271 Page 11-105PDF Image | AFS-640
