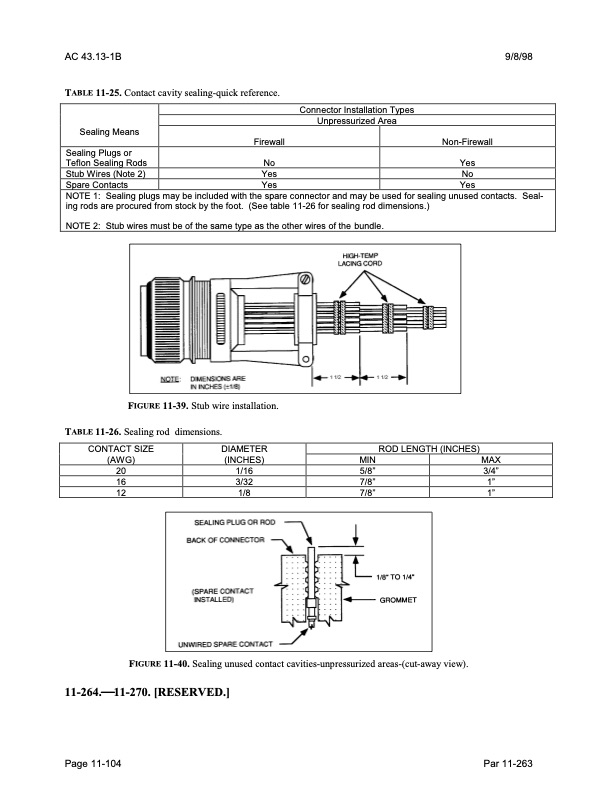

AC 43.13-1B 9/8/98 TABLE 11-25. Contact cavity sealing-quick reference. Sealing Means Connector Installation Types Unpressurized Area Sealing Plugs or Teflon Sealing Rods Stub Wires (Note 2) Spare Contacts Firewall No Yes Yes Non-Firewall Yes No Yes NOTE 1: Sealing plugs may be included with the spare connector and may be used for sealing unused contacts. Seal- ing rods are procured from stock by the foot. (See table 11-26 for sealing rod dimensions.) NOTE 2: Stub wires must be of the same type as the other wires of the bundle. FIGURE 11-39. Stub wire installation. TABLE 11-26. Sealing rod dimensions. CONTACT SIZE (AWG) 20 16 12 DIAMETER (INCHES) 1/16 3/32 1/8 ROD LENGTH (INCHES) MIN 5/8” 7/8” 7/8” MAX 3/4” 1” 1” FIGURE 11-40. Sealing unused contact cavities-unpressurized areas-(cut-away view). 11-264.11-270. [RESERVED.] Page 11-104 Par 11-263PDF Image | AFS-640
