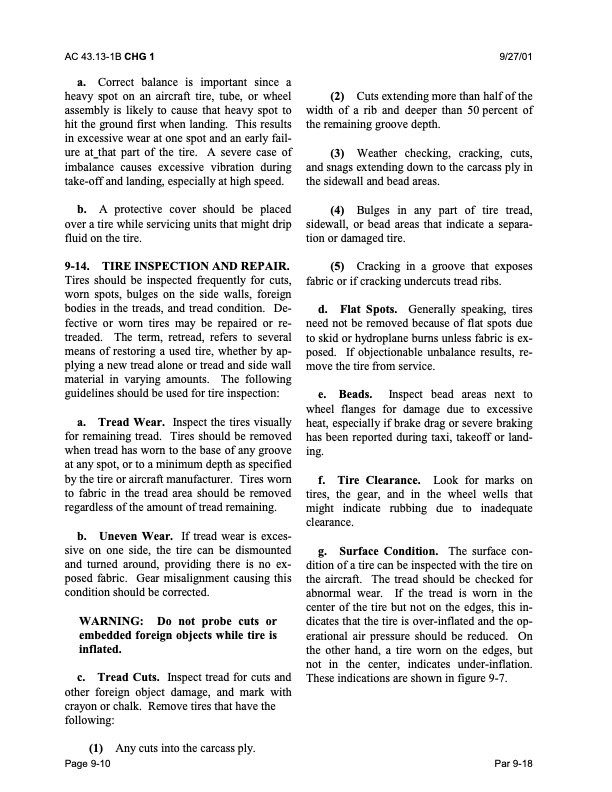

AC 43.13-1B CHG 1 9/27/01 a. Correct balance is important since a heavy spot on an aircraft tire, tube, or wheel assembly is likely to cause that heavy spot to hit the ground first when landing. This results in excessive wear at one spot and an early fail- ure at that part of the tire. A severe case of imbalance causes excessive vibration during take-off and landing, especially at high speed. b. A protective cover should be placed over a tire while servicing units that might drip fluid on the tire. 9-14. TIRE INSPECTION AND REPAIR. Tires should be inspected frequently for cuts, worn spots, bulges on the side walls, foreign bodies in the treads, and tread condition. De- fective or worn tires may be repaired or re- treaded. The term, retread, refers to several means of restoring a used tire, whether by ap- plying a new tread alone or tread and side wall material in varying amounts. The following guidelines should be used for tire inspection: a. Tread Wear. Inspect the tires visually for remaining tread. Tires should be removed when tread has worn to the base of any groove at any spot, or to a minimum depth as specified by the tire or aircraft manufacturer. Tires worn to fabric in the tread area should be removed regardless of the amount of tread remaining. b. Uneven Wear. If tread wear is exces- sive on one side, the tire can be dismounted and turned around, providing there is no ex- posed fabric. Gear misalignment causing this condition should be corrected. WARNING: Do not probe cuts or embedded foreign objects while tire is inflated. c. Tread Cuts. Inspect tread for cuts and other foreign object damage, and mark with crayon or chalk. Remove tires that have the following: (1) Any cuts into the carcass ply. Page 9-10 (2) Cuts extending more than half of the width of a rib and deeper than 50 percent of the remaining groove depth. (3) Weather checking, cracking, cuts, and snags extending down to the carcass ply in the sidewall and bead areas. (4) Bulges in any part of tire tread, sidewall, or bead areas that indicate a separa- tion or damaged tire. (5) Cracking in a groove that exposes fabric or if cracking undercuts tread ribs. d. Flat Spots. Generally speaking, tires need not be removed because of flat spots due to skid or hydroplane burns unless fabric is ex- posed. If objectionable unbalance results, re- move the tire from service. e. Beads. Inspect bead areas next to wheel flanges for damage due to excessive heat, especially if brake drag or severe braking has been reported during taxi, takeoff or land- ing. f. Tire Clearance. Look for marks on tires, the gear, and in the wheel wells that might indicate rubbing due to inadequate clearance. g. Surface Condition. The surface con- dition of a tire can be inspected with the tire on the aircraft. The tread should be checked for abnormal wear. If the tread is worn in the center of the tire but not on the edges, this in- dicates that the tire is over-inflated and the op- erational air pressure should be reduced. On the other hand, a tire worn on the edges, but not in the center, indicates under-inflation. These indications are shown in figure 9-7. Par 9-18PDF Image | AFS-640
