Text from PDF Page: 365

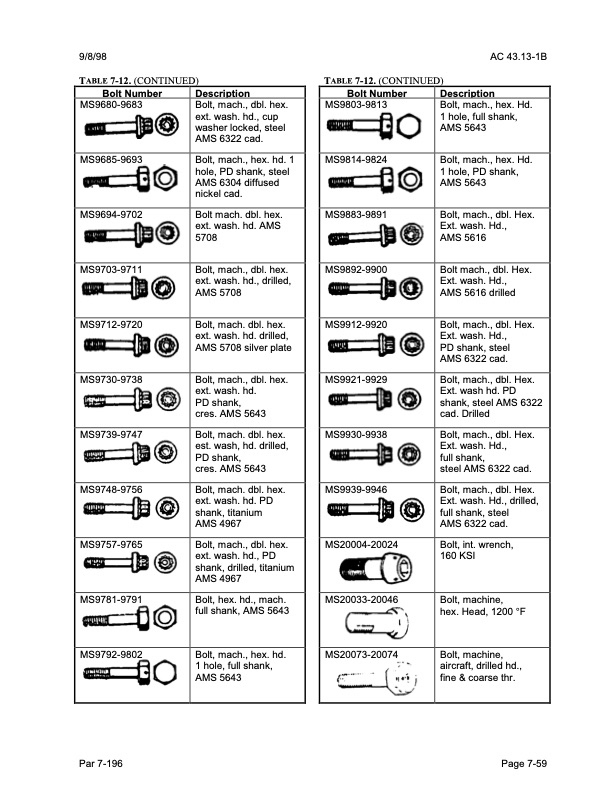

9/8/98 AC 43.13-1B TABLE 7-12. (CONTINUED) Bolt Number Description TABLE 7-12. (CONTINUED) Bolt Number Description MS9680-9683 Bolt, mach., dbl. hex. ext. wash. hd., cup washer locked, steel AMS 6322 cad. MS9685-9693 Bolt, mach., hex. hd. 1 hole, PD shank, steel AMS 6304 diffused nickel cad. MS9694-9702 Bolt mach. dbl. hex. ext. wash. hd. AMS 5708 MS9703-9711 Bolt, mach., dbl. hex. ext. wash. hd., drilled, AMS 5708 MS9712-9720 Bolt, mach. dbl. hex. ext. wash. hd. drilled, AMS 5708 silver plate MS9730-9738 Bolt, mach., dbl. hex. ext. wash. hd. PD shank, cres. AMS 5643 MS9739-9747 Bolt, mach. dbl. hex. est. wash, hd. drilled, PD shank, cres. AMS 5643 MS9748-9756 Bolt, mach. dbl. hex. ext. wash. hd. PD shank, titanium AMS 4967 MS9757-9765 Bolt, mach., dbl. hex. ext. wash. hd., PD shank, drilled, titanium AMS 4967 MS9781-9791 Bolt, hex. hd., mach. full shank, AMS 5643 MS9792-9802 Bolt, mach., hex. hd. 1 hole, full shank, AMS 5643 MS9803-9813 Bolt, mach., hex. Hd. 1 hole, full shank, AMS 5643 MS9814-9824 Bolt, mach., hex. Hd. 1 hole, PD shank, AMS 5643 MS9883-9891 Bolt, mach., dbl. Hex. Ext. wash. Hd., AMS 5616 MS9892-9900 Bolt mach., dbl. Hex. Ext. wash. Hd., AMS 5616 drilled MS9912-9920 Bolt, mach., dbl. Hex. Ext. wash. Hd., PD shank, steel AMS 6322 cad. MS9921-9929 Bolt, mach., dbl. Hex. Ext. wash hd. PD shank, steel AMS 6322 cad. Drilled MS9930-9938 Bolt, mach., dbl. Hex. Ext. wash. Hd., full shank, steel AMS 6322 cad. MS9939-9946 Bolt, mach., dbl. Hex. Ext. wash. Hd., drilled, full shank, steel AMS 6322 cad. MS20004-20024 Bolt, int. wrench, 160 KSI MS20033-20046 Bolt, machine, hex. Head, 1200 °F MS20073-20074 Bolt, machine, aircraft, drilled hd., fine & coarse thr. Par 7-196 Page 7-59
