Text from PDF Page: 364

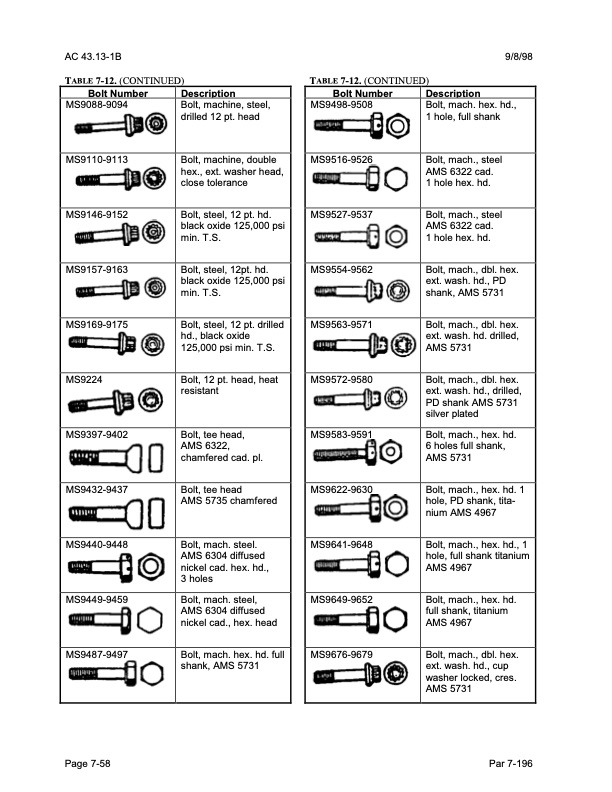

AC 43.13-1B 9/8/98 TABLE 7-12. (CONTINUED) Bolt Number Description TABLE 7-12. (CONTINUED) Bolt Number Description MS9088-9094 Bolt, machine, steel, drilled 12 pt. head MS9110-9113 Bolt, machine, double hex., ext. washer head, close tolerance MS9146-9152 Bolt, steel, 12 pt. hd. black oxide 125,000 psi min. T.S. MS9157-9163 Bolt, steel, 12pt. hd. black oxide 125,000 psi min. T.S. MS9169-9175 Bolt, steel, 12 pt. drilled hd., black oxide 125,000 psi min. T.S. MS9224 Bolt, 12 pt. head, heat resistant MS9397-9402 Bolt, tee head, AMS 6322, chamfered cad. pl. MS9432-9437 Bolt, tee head AMS 5735 chamfered MS9440-9448 Bolt, mach. steel. AMS 6304 diffused nickel cad. hex. hd., 3 holes MS9449-9459 Bolt, mach. steel, AMS 6304 diffused nickel cad., hex. head MS9487-9497 Bolt, mach. hex. hd. full shank, AMS 5731 MS9498-9508 Bolt, mach. hex. hd., 1 hole, full shank MS9516-9526 Bolt, mach., steel AMS 6322 cad. 1 hole hex. hd. MS9527-9537 Bolt, mach., steel AMS 6322 cad. 1 hole hex. hd. MS9554-9562 Bolt, mach., dbl. hex. ext. wash. hd., PD shank, AMS 5731 MS9563-9571 Bolt, mach., dbl. hex. ext. wash. hd. drilled, AMS 5731 MS9572-9580 Bolt, mach., dbl. hex. ext. wash. hd., drilled, PD shank AMS 5731 silver plated MS9583-9591 Bolt, mach., hex. hd. 6 holes full shank, AMS 5731 MS9622-9630 Bolt, mach., hex. hd. 1 hole, PD shank, tita- nium AMS 4967 MS9641-9648 Bolt, mach., hex. hd., 1 hole, full shank titanium AMS 4967 MS9649-9652 Bolt, mach., hex. hd. full shank, titanium AMS 4967 MS9676-9679 Bolt, mach., dbl. hex. ext. wash. hd., cup washer locked, cres. AMS 5731 Page 7-58 Par 7-196PDF Image | AFS-640
