PDF Publication Title:
Text from PDF Page: 356

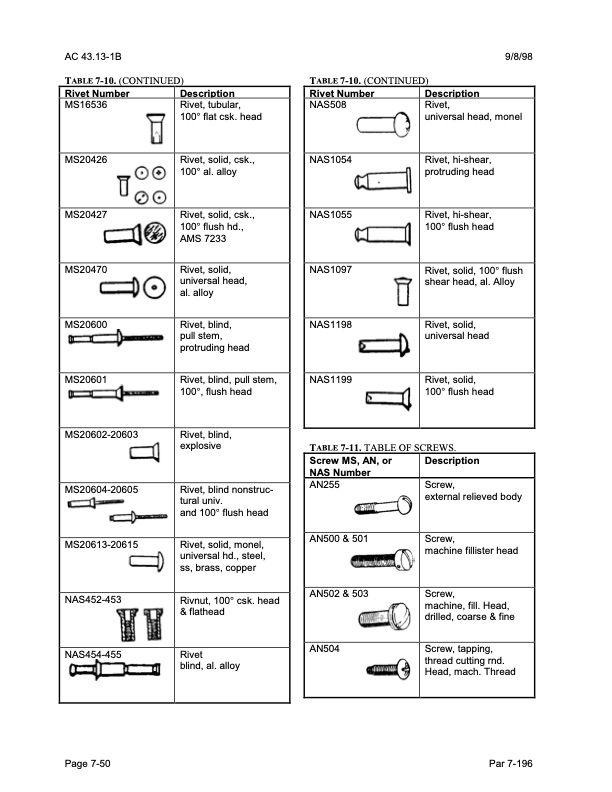

AC 43.13-1B 9/8/98 TABLE 7-10. (CONTINUED) Rivet Number Description TABLE 7-10. (CONTINUED) Rivet Number Description TABLE 7-11. TABLE OF SCREWS. Screw MS, AN, or Description NAS Number MS16536 Rivet, tubular, 100° flat csk. head MS20426 Rivet, solid, csk., 100° al. alloy MS20427 Rivet, solid, csk., 100° flush hd., AMS 7233 MS20470 Rivet, solid, universal head, al. alloy MS20600 Rivet, blind, pull stem, protruding head MS20601 Rivet, blind, pull stem, 100°, flush head MS20602-20603 Rivet, blind, explosive MS20604-20605 Rivet, blind nonstruc- tural univ. and 100° flush head MS20613-20615 Rivet, solid, monel, universal hd., steel, ss, brass, copper NAS452-453 Rivnut, 100° csk. head & flathead NAS454-455 Rivet blind, al. alloy NAS508 Rivet, universal head, monel NAS1054 Rivet, hi-shear, protruding head NAS1055 Rivet, hi-shear, 100° flush head NAS1097 Rivet, solid, 100° flush shear head, al. Alloy NAS1198 Rivet, solid, universal head NAS1199 Rivet, solid, 100° flush head AN255 Screw, external relieved body AN500 & 501 Screw, machine fillister head AN502 & 503 Screw, machine, fill. Head, drilled, coarse & fine AN504 Screw, tapping, thread cutting rnd. Head, mach. Thread Page 7-50 Par 7-196PDF Image | AFS-640
PDF Search Title:
AFS-640Original File Name Searched:
ac_43.13-1b_w-chg1.pdfDIY PDF Search: Google It | Yahoo | Bing
