PDF Publication Title:
Text from PDF Page: 355

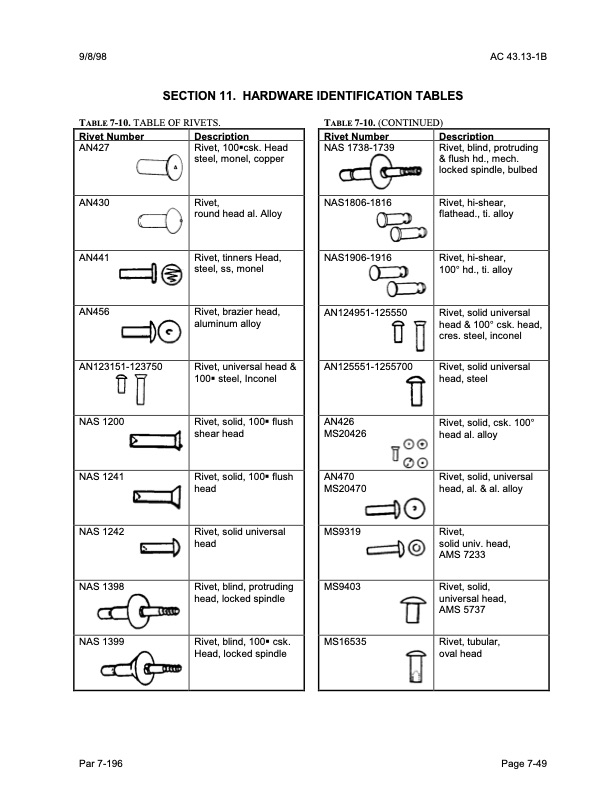

9/8/98 AC 43.13-1B SECTION 11. HARDWARE IDENTIFICATION TABLES TABLE 7-10. TABLE OF RIVETS. Rivet Number Description TABLE 7-10. (CONTINUED) Rivet Number Description AN427 Rivet, 100�csk. Head steel, monel, copper AN430 Rivet, round head al. Alloy AN441 Rivet, tinners Head, steel, ss, monel AN456 Rivet, brazier head, aluminum alloy AN123151-123750 Rivet, universal head & 100� steel, Inconel NAS 1200 Rivet, solid, 100� flush shear head NAS 1241 Rivet, solid, 100� flush head NAS 1242 Rivet, solid universal head NAS 1398 Rivet, blind, protruding head, locked spindle NAS 1399 Rivet, blind, 100� csk. Head, locked spindle NAS 1738-1739 Rivet, blind, protruding & flush hd., mech. locked spindle, bulbed NAS1806-1816 Rivet, hi-shear, flathead., ti. alloy NAS1906-1916 Rivet, hi-shear, 100° hd., ti. alloy AN124951-125550 Rivet, solid universal head & 100° csk. head, cres. steel, inconel AN125551-1255700 Rivet, solid universal head, steel AN426 MS20426 Rivet, solid, csk. 100° head al. alloy AN470 MS20470 Rivet, solid, universal head, al. & al. alloy MS9319 Rivet, solid univ. head, AMS 7233 MS9403 Rivet, solid, universal head, AMS 5737 MS16535 Rivet, tubular, oval head Par 7-196 Page 7-49PDF Image | AFS-640
