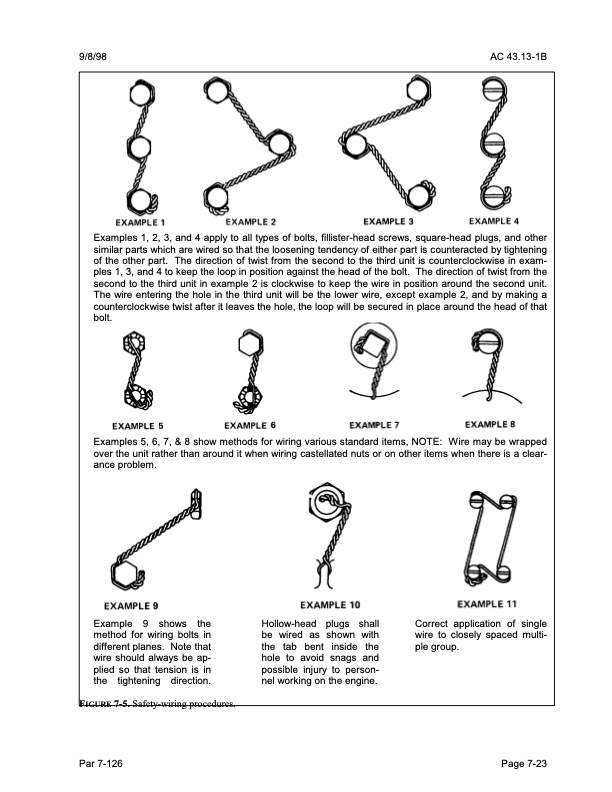

9/8/98 AC 43.13-1B Examples 1, 2, 3, and 4 apply to all types of bolts, fillister-head screws, square-head plugs, and other similar parts which are wired so that the loosening tendency of either part is counteracted by tightening of the other part. The direction of twist from the second to the third unit is counterclockwise in exam- ples 1, 3, and 4 to keep the loop in position against the head of the bolt. The direction of twist from the second to the third unit in example 2 is clockwise to keep the wire in position around the second unit. The wire entering the hole in the third unit will be the lower wire, except example 2, and by making a counterclockwise twist after it leaves the hole, the loop will be secured in place around the head of that bolt. Examples 5, 6, 7, & 8 show methods for wiring various standard items, NOTE: Wire may be wrapped over the unit rather than around it when wiring castellated nuts or on other items when there is a clear- ance problem. Example 9 shows the method for wiring bolts in different planes. Note that wire should always be ap- plied so that tension is in the tightening direction. FIGURE 7-5. Safety-wiring procedures. Hollow-head plugs shall be wired as shown with the tab bent inside the hole to avoid snags and possible injury to person- nel working on the engine. Correct application of single wire to closely spaced multi- ple group. Par 7-126 Page 7-23PDF Image | AFS-640
