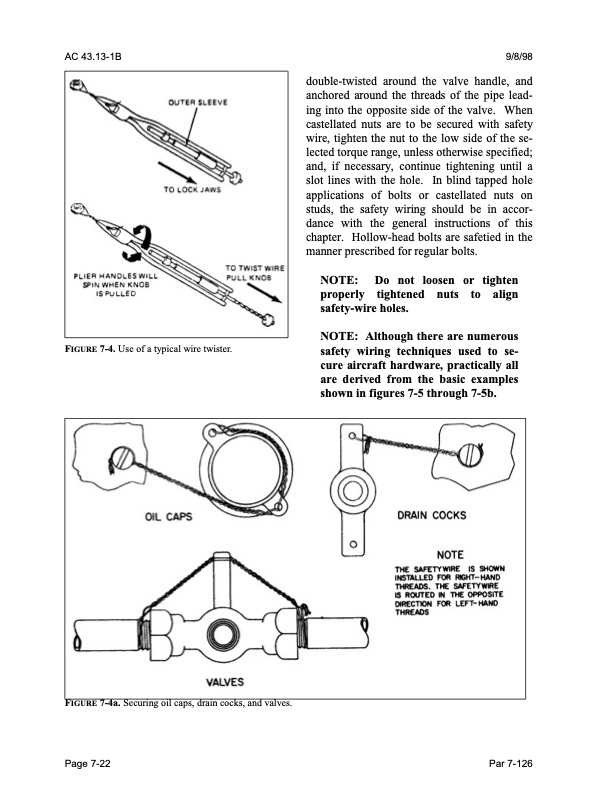

AC 43.13-1B 9/8/98 FIGURE 7-4. Use of a typical wire twister. double-twisted around the valve handle, and anchored around the threads of the pipe lead- ing into the opposite side of the valve. When castellated nuts are to be secured with safety wire, tighten the nut to the low side of the se- lected torque range, unless otherwise specified; and, if necessary, continue tightening until a slot lines with the hole. In blind tapped hole applications of bolts or castellated nuts on studs, the safety wiring should be in accor- dance with the general instructions of this chapter. Hollow-head bolts are safetied in the manner prescribed for regular bolts. NOTE: Do not loosen or tighten properly tightened nuts to align safety-wire holes. NOTE: Although there are numerous safety wiring techniques used to se- cure aircraft hardware, practically all are derived from the basic examples shown in figures 7-5 through 7-5b. FIGURE 7-4a. Securing oil caps, drain cocks, and valves. Page 7-22 Par 7-126PDF Image | AFS-640
