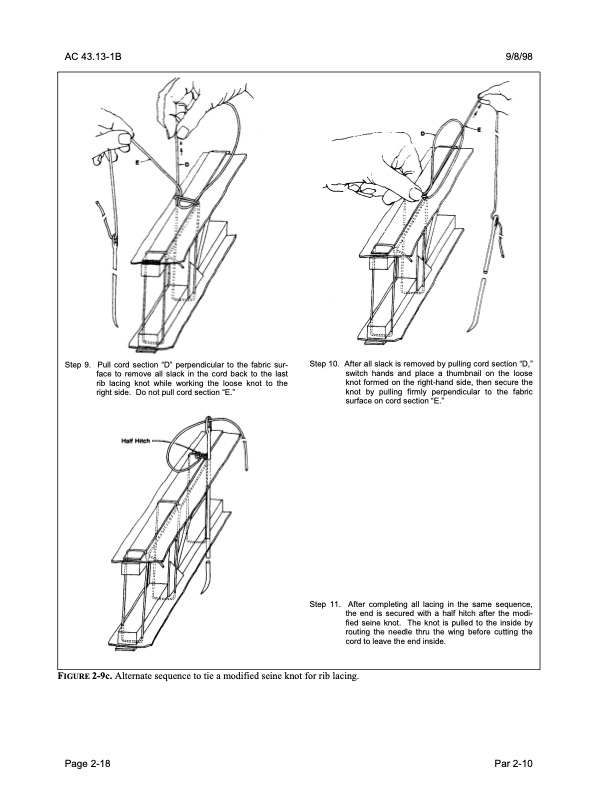

AC 43.13-1B 9/8/98 Step 9. Pull cord section “D” perpendicular to the fabric sur- face to remove all slack in the cord back to the last rib lacing knot while working the loose knot to the right side. Do not pull cord section “E.” Step 10. After all slack is removed by pulling cord section “D,” switch hands and place a thumbnail on the loose knot formed on the right-hand side, then secure the knot by pulling firmly perpendicular to the fabric surface on cord section “E.” Step 11. After completing all lacing in the same sequence, the end is secured with a half hitch after the modi- fied seine knot. The knot is pulled to the inside by routing the needle thru the wing before cutting the cord to leave the end inside. FIGURE 2-9c. Alternate sequence to tie a modified seine knot for rib lacing. Page 2-18 Par 2-10PDF Image | AFS-640
