PDF Publication Title:
Text from PDF Page: 042

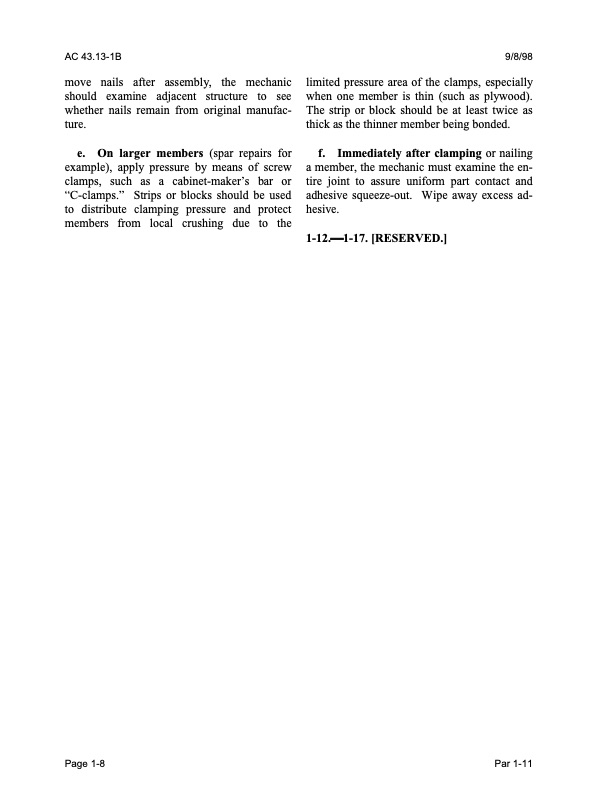

AC 43.13-1B 9/8/98 move nails after assembly, the mechanic should examine adjacent structure to see whether nails remain from original manufac- ture. e. On larger members (spar repairs for example), apply pressure by means of screw clamps, such as a cabinet-maker’s bar or “C-clamps.” Strips or blocks should be used to distribute clamping pressure and protect members from local crushing due to the limited pressure area of the clamps, especially when one member is thin (such as plywood). The strip or block should be at least twice as thick as the thinner member being bonded. f. Immediately after clamping or nailing a member, the mechanic must examine the en- tire joint to assure uniform part contact and adhesive squeeze-out. Wipe away excess ad- hesive. 1-12.1-17. [RESERVED.] Page 1-8 Par 1-11PDF Image | AFS-640
