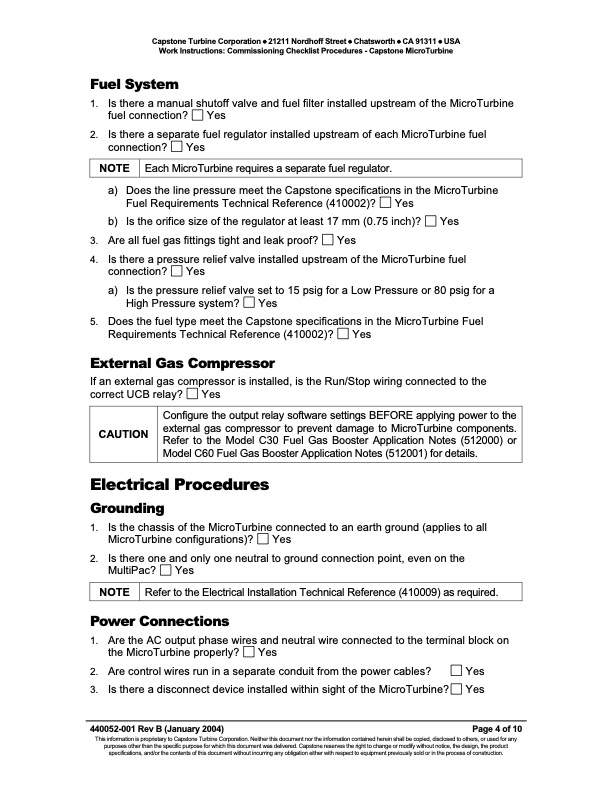

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Work Instructions: Commissioning Checklist Procedures - Capstone MicroTurbine Fuel System 1. Is there a manual shutoff valve and fuel filter installed upstream of the MicroTurbine fuel connection? Yes 2. Is there a separate fuel regulator installed upstream of each MicroTurbine fuel connection? Yes NOTE Each MicroTurbine requires a separate fuel regulator. a) Does the line pressure meet the Capstone specifications in the MicroTurbine Fuel Requirements Technical Reference (410002)? Yes b) Is the orifice size of the regulator at least 17 mm (0.75 inch)? Yes 3. Are all fuel gas fittings tight and leak proof? Yes 4. Is there a pressure relief valve installed upstream of the MicroTurbine fuel connection? Yes a) Is the pressure relief valve set to 15 psig for a Low Pressure or 80 psig for a High Pressure system? Yes 5. Does the fuel type meet the Capstone specifications in the MicroTurbine Fuel Requirements Technical Reference (410002)? Yes External Gas Compressor If an external gas compressor is installed, is the Run/Stop wiring connected to the correct UCB relay? Yes Electrical Procedures Grounding 1. Is the chassis of the MicroTurbine connected to an earth ground (applies to all MicroTurbine configurations)? Yes 2. Is there one and only one neutral to ground connection point, even on the MultiPac? Yes NOTE Refer to the Electrical Installation Technical Reference (410009) as required. Power Connections 1. Are the AC output phase wires and neutral wire connected to the terminal block on the MicroTurbine properly? Yes CAUTION Configure the output relay software settings BEFORE applying power to the external gas compressor to prevent damage to MicroTurbine components. Refer to the Model C30 Fuel Gas Booster Application Notes (512000) or Model C60 Fuel Gas Booster Application Notes (512001) for details. 2. Are control wires run in a separate conduit from the power cables? 3. Is there a disconnect device installed within sight of the MicroTurbine? 440052-001 Rev B (January 2004) Yes Yes Page 4 of 10 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Work Instructions Commissioning Checklist Procedures Capstone MicroTurbine
