Text from PDF Page: 011

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • U.S.A. Technical Reference: Display Panel Menu Options - Capstone MicroTurbine Current A, Current B (at time of incident) Current A: Actual output current, phase A in amps Current B: Actual output current, phase B in amps Current C, Frequency (at time of incident) Actual output current, phase C in amps. Actual output frequency in Hertz. DC Volts, PS Volts DC Bus Volts and Power Supply Voltage at time of selected incident. System Settings Menu The top-level System Settings menu allows the user to change some of the global operating parameters that apply regardless of application or operating mode. Usually these parameters are established at installation and not changed thereafter. The System Settings submenus are detailed below. Display Format The Display Format submenu on line two allows the User the selection of Metric or English measurements. Set Date/Time The Set Date/Time submenu on line two allows the User to change the system date and time. This is stored in the controller for incident logging and time-based dispatch modes. The system date is in MM/DD/YYYY format and the system time is in 24:00:00. Fuel Index 1 A parameter used to adjust the fuel system controls to handle fuels of very low or very high- energy content. Default: 1.00. Default values should not be adjusted unless flameout problems arise. 410045-001 Rev A (February 2004) Page 11 of 28 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. NOTE The user will be able to view the data on the various screens of the System Settings Menu without logging on with a password; to change any settings requires logging on with a user password.

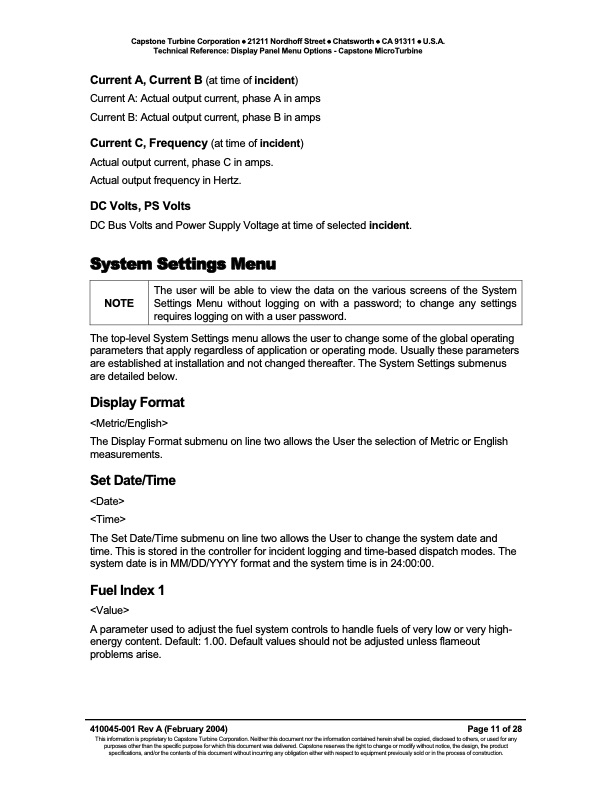

PDF Image | Technical Reference Display Panel Menu Options Capstone MicroTurbine

technical-reference-display-panel-menu-options-capstone-micr-011
