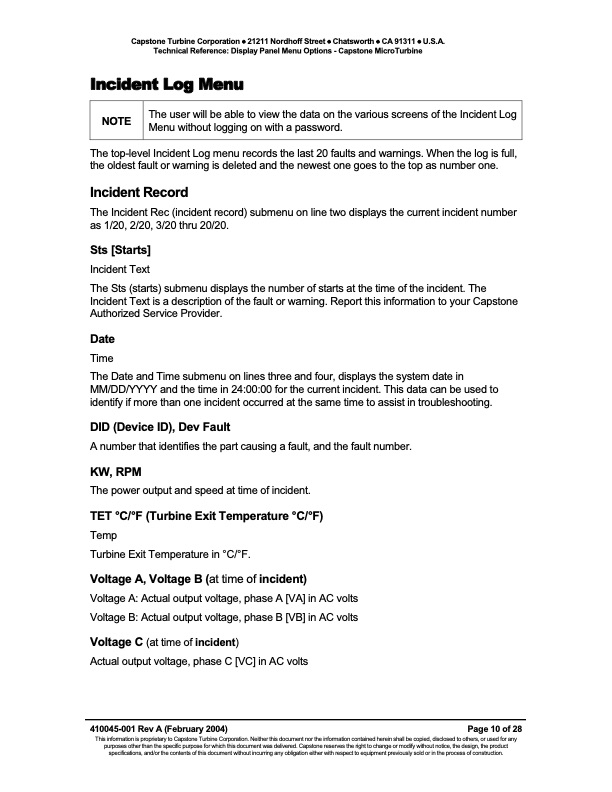

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • U.S.A. Technical Reference: Display Panel Menu Options - Capstone MicroTurbine Incident Log Menu The user will be able to view the data on the various screens of the Incident Log Menu without logging on with a password. The top-level Incident Log menu records the last 20 faults and warnings. When the log is full, the oldest fault or warning is deleted and the newest one goes to the top as number one. Incident Record The Incident Rec (incident record) submenu on line two displays the current incident number as 1/20, 2/20, 3/20 thru 20/20. Sts [Starts] Incident Text The Sts (starts) submenu displays the number of starts at the time of the incident. The Incident Text is a description of the fault or warning. Report this information to your Capstone Authorized Service Provider. Date Time The Date and Time submenu on lines three and four, displays the system date in MM/DD/YYYY and the time in 24:00:00 for the current incident. This data can be used to identify if more than one incident occurred at the same time to assist in troubleshooting. NOTE DID (Device ID), Dev Fault A number that identifies the part causing a fault, and the fault number. KW, RPM The power output and speed at time of incident. TET °C/°F (Turbine Exit Temperature °C/°F) Temp Turbine Exit Temperature in °C/°F. Voltage A, Voltage B (at time of incident) Voltage A: Actual output voltage, phase A [VA] in AC volts Voltage B: Actual output voltage, phase B [VB] in AC volts Voltage C (at time of incident) Actual output voltage, phase C [VC] in AC volts 410045-001 Rev A (February 2004) Page 10 of 28 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Display Panel Menu Options Capstone MicroTurbine
