Text from PDF Page: 007

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • U.S.A. Technical Reference: Display Panel Menu Options - Capstone MicroTurbine Enter Password The Enter Password submenu allows the user to logon and access the MicroTurbine controls. The factory default User-level password is 87712370. Refer to the previous section on passwords for more data. System Components Menu The user will be able to view or change the data on the various screens of the System Components Menu without logging on with a password. The top-level System Components menu displays the hardware and software components that are installed on the MicroTurbine. This menu lists Capstone serial numbers and part numbers for the MicroTurbine, control board, power board, display panel, fuel device(s), and battery device contained within the system. Serial numbers are six digits, all numeric. Part numbers are six digits followed by a dash and three additional digits. This menu also displays information regarding the software used to run the power electronics, the display panel and fuel device(s), battery device and User Connection Board (UCB) contained within the system. This information should be provided to the Authorized Service Provider for any service call. The System Components submenus are detailed below System ,
The System submenu displays the serial and part number of the MicroTurbine system. NOTE DPC (C30) ,
~~The serial number and part number of the Digital Power Controller. ECM (C60) ,~~
~~The serial number and part number of the Engine Control Module. LCM (C60) ,~~
~~The serial number and part number of the Load Control Module. Engine ,~~
The serial number and part number of the engine. 410045-001 Rev A (February 2004) Page 7 of 28 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.

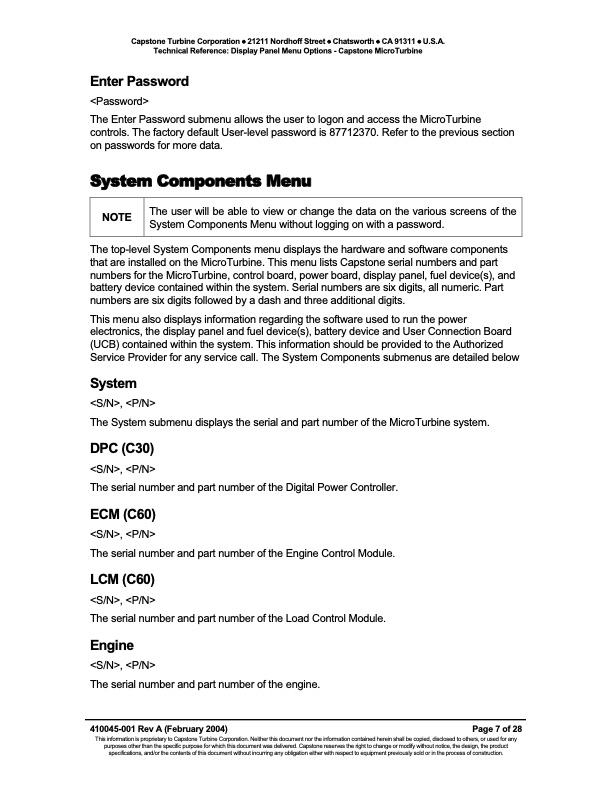

PDF Image | Technical Reference Display Panel Menu Options Capstone MicroTurbine
