Text from PDF Page: 006

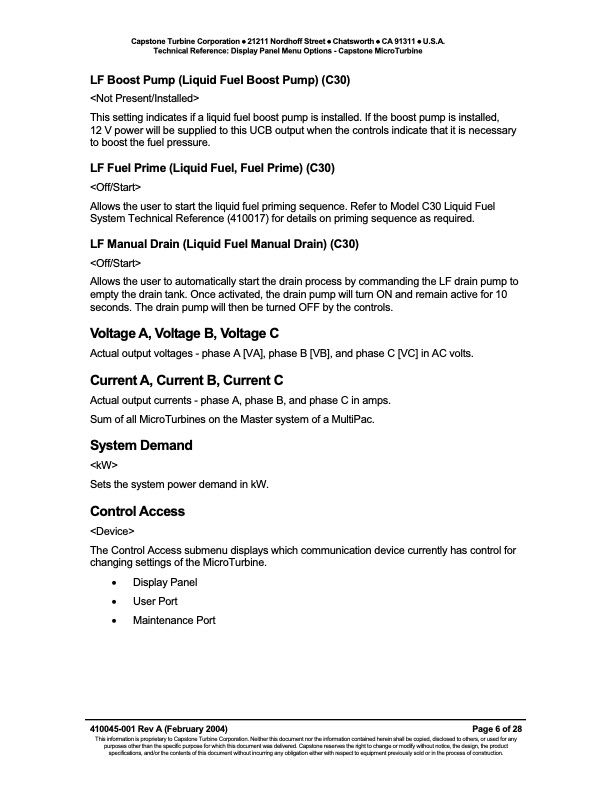

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • U.S.A. Technical Reference: Display Panel Menu Options - Capstone MicroTurbine LF Boost Pump (Liquid Fuel Boost Pump) (C30) This setting indicates if a liquid fuel boost pump is installed. If the boost pump is installed, 12 V power will be supplied to this UCB output when the controls indicate that it is necessary to boost the fuel pressure. LF Fuel Prime (Liquid Fuel, Fuel Prime) (C30) Allows the user to start the liquid fuel priming sequence. Refer to Model C30 Liquid Fuel System Technical Reference (410017) for details on priming sequence as required. LF Manual Drain (Liquid Fuel Manual Drain) (C30) Allows the user to automatically start the drain process by commanding the LF drain pump to empty the drain tank. Once activated, the drain pump will turn ON and remain active for 10 seconds. The drain pump will then be turned OFF by the controls. Voltage A, Voltage B, Voltage C Actual output voltages - phase A [VA], phase B [VB], and phase C [VC] in AC volts. Current A, Current B, Current C Actual output currents - phase A, phase B, and phase C in amps. Sum of all MicroTurbines on the Master system of a MultiPac. System Demand Sets the system power demand in kW. Control Access The Control Access submenu displays which communication device currently has control for changing settings of the MicroTurbine. • Display Panel • User Port • Maintenance Port 410045-001 Rev A (February 2004) Page 6 of 28 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.
