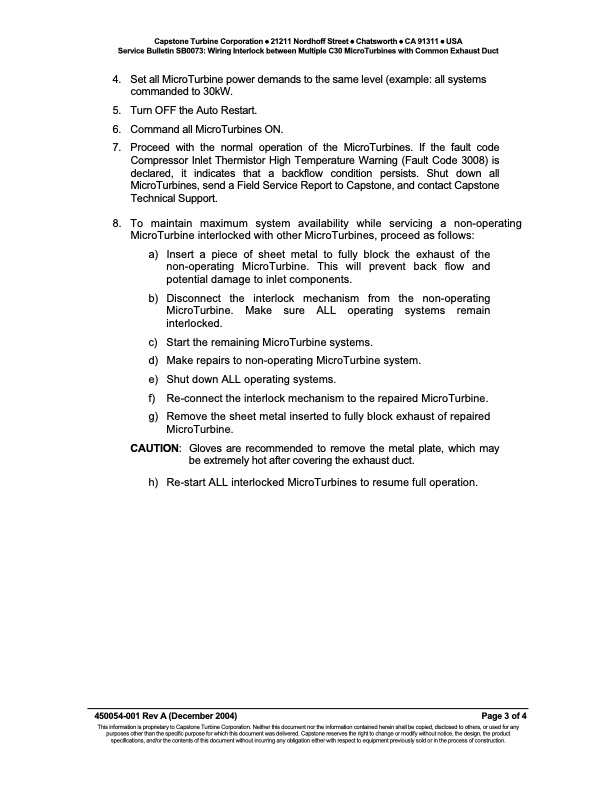

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Service Bulletin SB0073: Wiring Interlock between Multiple C30 MicroTurbines with Common Exhaust Duct 4. Set all MicroTurbine power demands to the same level (example: all systems commanded to 30kW. 5. Turn OFF the Auto Restart. 6. Command all MicroTurbines ON. 7. Proceed with the normal operation of the MicroTurbines. If the fault code Compressor Inlet Thermistor High Temperature Warning (Fault Code 3008) is declared, it indicates that a backflow condition persists. Shut down all MicroTurbines, send a Field Service Report to Capstone, and contact Capstone Technical Support. 8. To maintain maximum system availability while servicing a non-operating MicroTurbine interlocked with other MicroTurbines, proceed as follows: a) Insert a piece of sheet metal to fully block the exhaust of the non-operating MicroTurbine. This will prevent back flow and potential damage to inlet components. b) Disconnect the interlock mechanism from the non-operating MicroTurbine. Make sure ALL operating systems remain interlocked. c) Start the remaining MicroTurbine systems. d) Make repairs to non-operating MicroTurbine system. e) Shut down ALL operating systems. f) Re-connect the interlock mechanism to the repaired MicroTurbine. g) Remove the sheet metal inserted to fully block exhaust of repaired MicroTurbine. CAUTION: Gloves are recommended to remove the metal plate, which may be extremely hot after covering the exhaust duct. h) Re-start ALL interlocked MicroTurbines to resume full operation. 450054-001 Rev A (December 2004) Page 3 of 4 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Wiring Interlock between Multiple C30 MicroTurbines with Common Exhaust Duct
