Text from PDF Page: 002

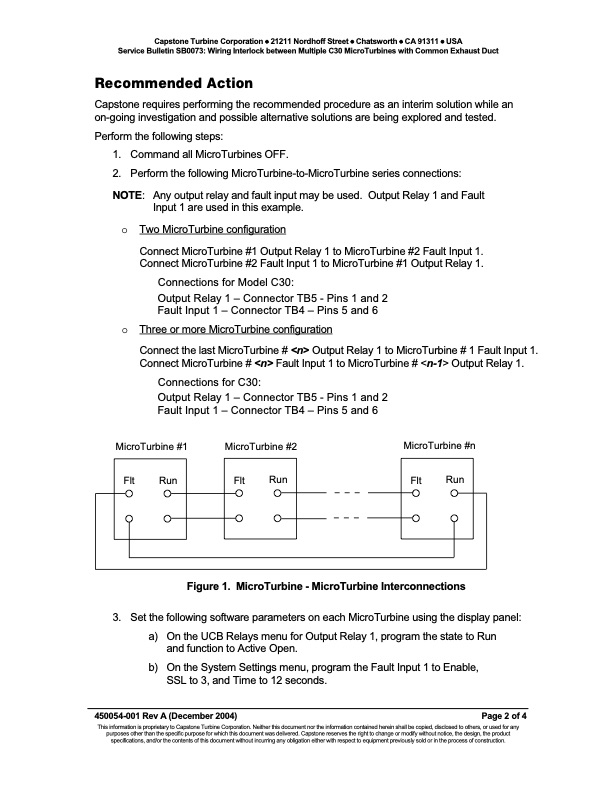

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Service Bulletin SB0073: Wiring Interlock between Multiple C30 MicroTurbines with Common Exhaust Duct Recommended Action Capstone requires performing the recommended procedure as an interim solution while an on-going investigation and possible alternative solutions are being explored and tested. Perform the following steps: 1. Command all MicroTurbines OFF. 2. Perform the following MicroTurbine-to-MicroTurbine series connections: NOTE: Any output relay and fault input may be used. Output Relay 1 and Fault Input 1 are used in this example. o Two MicroTurbine configuration Connect MicroTurbine #1 Output Relay 1 to MicroTurbine #2 Fault Input 1. Connect MicroTurbine #2 Fault Input 1 to MicroTurbine #1 Output Relay 1. Connections for Model C30: Output Relay 1 – Connector TB5 - Pins 1 and 2 Fault Input 1 – Connector TB4 – Pins 5 and 6 o Three or more MicroTurbine configuration Connect the last MicroTurbine # Output Relay 1 to MicroTurbine # 1 Fault Input 1. Connect MicroTurbine # Fault Input 1 to MicroTurbine # Output Relay 1. Connections for C30: Output Relay 1 – Connector TB5 - Pins 1 and 2 Fault Input 1 – Connector TB4 – Pins 5 and 6 MicroTurbine #1 MicroTurbine #2 MicroTurbine #n Flt Run Flt Run Flt Run Figure 1. MicroTurbine - MicroTurbine Interconnections 3. Set the following software parameters on each MicroTurbine using the display panel: a) On the UCB Relays menu for Output Relay 1, program the state to Run and function to Active Open. b) On the System Settings menu, program the Fault Input 1 to Enable, SSL to 3, and Time to 12 seconds. 450054-001 Rev A (December 2004) Page 2 of 4 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.
