PDF Publication Title:
Text from PDF Page: 002

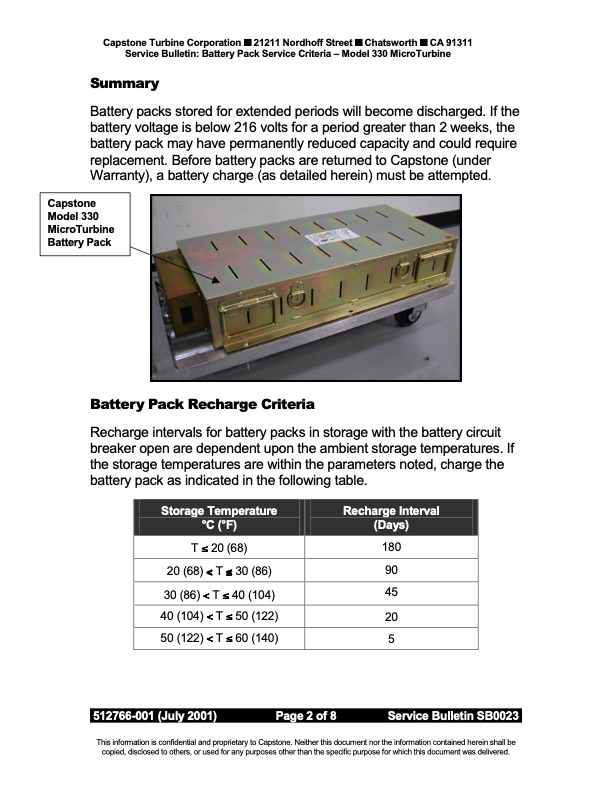

Capstone Turbine Corporation ■ 21211 Nordhoff Street ■ Chatsworth ■ CA 91311 Service Bulletin: Battery Pack Service Criteria – Model 330 MicroTurbine Summary Battery packs stored for extended periods will become discharged. If the battery voltage is below 216 volts for a period greater than 2 weeks, the battery pack may have permanently reduced capacity and could require replacement. Before battery packs are returned to Capstone (under Warranty), a battery charge (as detailed herein) must be attempted. Battery Pack Recharge Criteria Recharge intervals for battery packs in storage with the battery circuit breaker open are dependent upon the ambient storage temperatures. If the storage temperatures are within the parameters noted, charge the battery pack as indicated in the following table. Capstone Model 330 MicroTurbine Battery Pack Storage Temperature °C (°F) Recharge Interval (Days) T ≤ 20 (68) 20 (68) < T ≤ 30 (86) 30 (86) < T ≤ 40 (104) 40 (104) < T ≤ 50 (122) 50 (122) < T ≤ 60 (140) 512766-001 (July 2001) Page 2 of 8 180 90 45 20 5 Service Bulletin SB0023. This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Stand Alone Battery Pack Service Criteria Capstone Model 330 MicroTurbine
PDF Search Title:
Stand Alone Battery Pack Service Criteria Capstone Model 330 MicroTurbineOriginal File Name Searched:
sb0023.pdfDIY PDF Search: Google It | Yahoo | Bing
