PDF Publication Title:
Text from PDF Page: 001

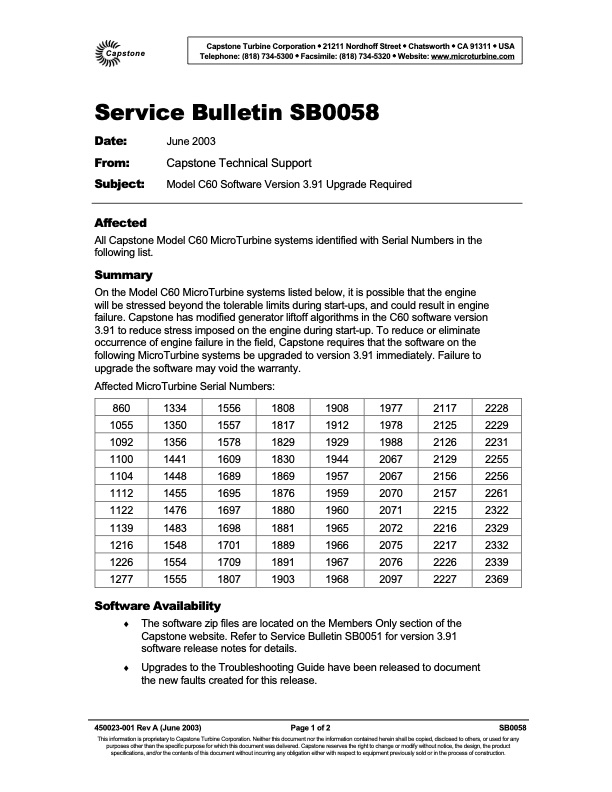

Capstone Service Bulletin SB0058 Date: From: Subject: Affected All Capstone Model C60 MicroTurbine systems identified with Serial Numbers in the following list. Summary On the Model C60 MicroTurbine systems listed below, it is possible that the engine will be stressed beyond the tolerable limits during start-ups, and could result in engine failure. Capstone has modified generator liftoff algorithms in the C60 software version 3.91 to reduce stress imposed on the engine during start-up. To reduce or eliminate occurrence of engine failure in the field, Capstone requires that the software on the following MicroTurbine systems be upgraded to version 3.91 immediately. Failure to upgrade the software may void the warranty. June 2003 Capstone Technical Support Model C60 Software Version 3.91 Upgrade Required Affected MicroTurbine Serial Numbers: 860 1334 1055 1350 1092 1356 1100 1441 1104 1448 1112 1455 1122 1476 1139 1483 1216 1548 1226 1554 1277 1555 1556 1808 1557 1817 1578 1829 1609 1830 1689 1869 1695 1876 1697 1880 1698 1881 1701 1889 1709 1891 1807 1903 1908 1977 1912 1978 1929 1988 1944 2067 1957 2067 1959 2070 1960 2071 1965 2072 1966 2075 1967 2076 1968 2097 ♦ The software zip files Capstone website. Refer to Service Bulletin SB0051 for version 3.91 software release notes for details. ♦ Upgrades to the Troubleshooting Guide have been released to document the new faults created for this release. 450023-001 Rev A (June 2003) Page 1 of 2 2117 2125 2126 2129 2156 2157 2215 2216 2217 2226 2227 2228 2229 2231 2255 2256 2261 2322 2329 2332 2339 2369 Software Availability Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Telephone: (818) 734-5300 • Facsimile: (818) 734-5320 • Website: www.microturbine.com are located on the Members Only section of the This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, SB0058 or used for any the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Model C60 Software Version 3.91 Upgrade Required
PDF Search Title:
Model C60 Software Version 3.91 Upgrade RequiredOriginal File Name Searched:
SB0058_C60 Software V3.91 Upgrade Required.pdfDIY PDF Search: Google It | Yahoo | Bing
