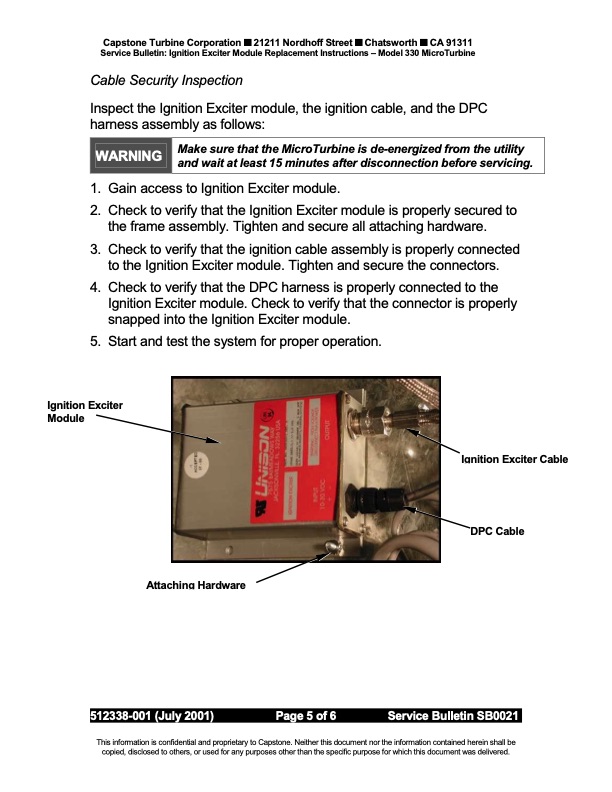

Capstone Turbine Corporation ■ 21211 Nordhoff Street ■ Chatsworth ■ CA 91311 Service Bulletin: Ignition Exciter Module Replacement Instructions – Model 330 MicroTurbine Cable Security Inspection Inspect the Ignition Exciter module, the ignition cable, and the DPC harness assembly as follows: WARNING Make sure that the MicroTurbine is de-energized from the utility and wait at least 15 minutes after disconnection before servicing. 1. Gain access to Ignition Exciter module. 2. Check to verify that the Ignition Exciter module is properly secured to the frame assembly. Tighten and secure all attaching hardware. 3. Check to verify that the ignition cable assembly is properly connected to the Ignition Exciter module. Tighten and secure the connectors. 4. Check to verify that the DPC harness is properly connected to the Ignition Exciter module. Check to verify that the connector is properly snapped into the Ignition Exciter module. 5. Start and test the system for proper operation. Ignition Exciter Module Ignition Exciter Cable DPC Cable Attaching Hardware 512338-001 (July 2001) Page 5 of 6 Service Bulletin SB0021. This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Ignition Exciter Module Replacement and Ignition Cable Security Inspection – Capstone Model 330 MicroTurbine
