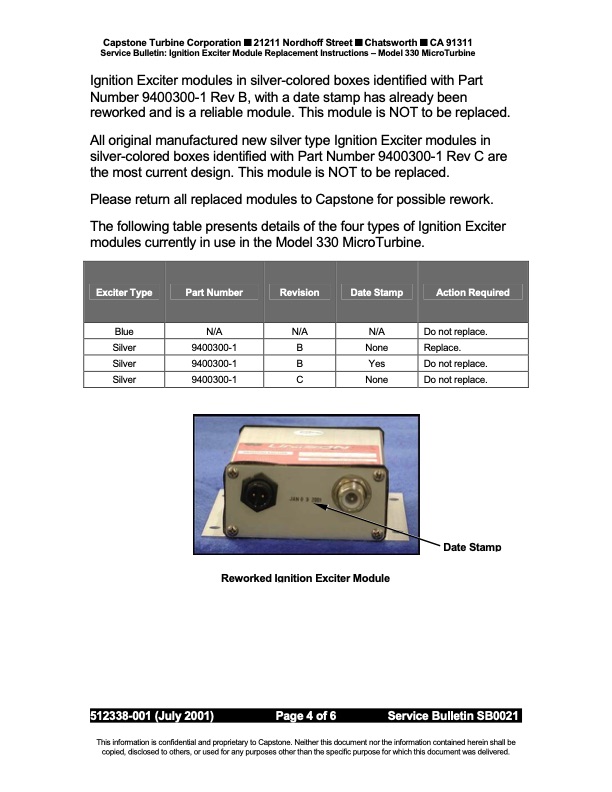

Capstone Turbine Corporation ■ 21211 Nordhoff Street ■ Chatsworth ■ CA 91311 Service Bulletin: Ignition Exciter Module Replacement Instructions – Model 330 MicroTurbine Ignition Exciter modules in silver-colored boxes identified with Part Number 9400300-1 Rev B, with a date stamp has already been reworked and is a reliable module. This module is NOT to be replaced. All original manufactured new silver type Ignition Exciter modules in silver-colored boxes identified with Part Number 9400300-1 Rev C are the most current design. This module is NOT to be replaced. Please return all replaced modules to Capstone for possible rework. The following table presents details of the four types of Ignition Exciter modules currently in use in the Model 330 MicroTurbine. Exciter Type Part Number Revision Date Stamp Action Required Blue Silver Silver Silver N/A 9400300-1 9400300-1 9400300-1 N/A N/A B None B Yes C None Do not replace. Replace. Do not replace. Do not replace. Reworked Ignition Exciter Module Date Stamp 512338-001 (July 2001) Page 4 of 6 Service Bulletin SB0021. This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Ignition Exciter Module Replacement and Ignition Cable Security Inspection – Capstone Model 330 MicroTurbine
