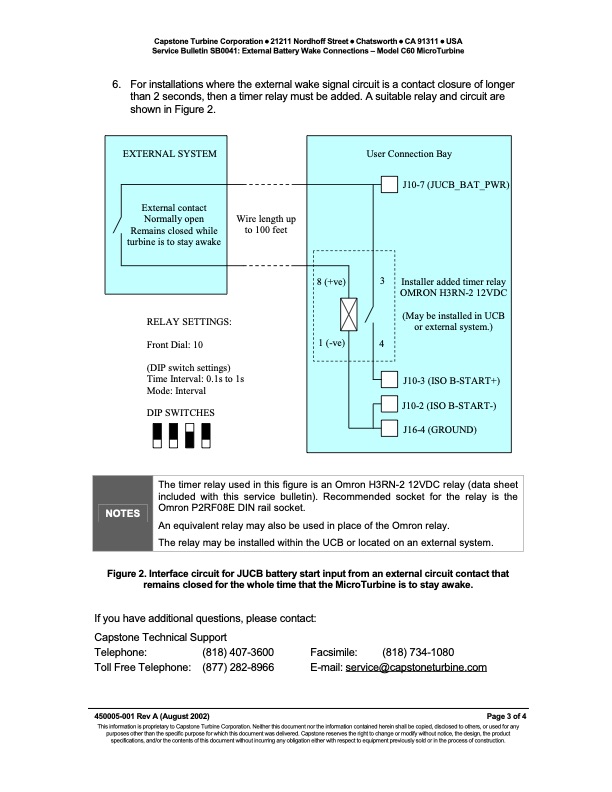

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Service Bulletin SB0041: External Battery Wake Connections – Model C60 MicroTurbine 6. For installations where the external wake signal circuit is a contact closure of longer than 2 seconds, then a timer relay must be added. A suitable relay and circuit are shown in Figure 2. Wire length up to 100 feet RELAY SETTINGS: Front Dial: 10 (DIP switch settings) Time Interval: 0.1s to 1s Mode: Interval DIP SWITCHES EXTERNAL SYSTEM External contact Normally open Remains closed while turbine is to stay awake 8 (+ve) User Connection Bay J10-7 (JUCB_BAT_PWR) 3 Installer added timer relay OMRON H3RN-2 12VDC (May be installed in UCB or external system.) J10-3 (ISO B-START+) J10-2 (ISO B-START-) J16-4 (GROUND) 1 (-ve) 4 NOTES The timer relay used in this figure is an Omron H3RN-2 12VDC relay (data sheet included with this service bulletin). Recommended socket for the relay is the Omron P2RF08E DIN rail socket. An equivalent relay may also be used in place of the Omron relay. The relay may be installed within the UCB or located on an external system. Figure 2. Interface circuit for JUCB battery start input from an external circuit contact that remains closed for the whole time that the MicroTurbine is to stay awake. If you have additional questions, please contact: Capstone Technical Support Telephone: (818) 407-3600 Toll Free Telephone: (877) 282-8966 450005-001 Rev A (August 2002) Facsimile: (818) 734-1080 E-mail: service@capstoneturbine.com Page 3 of 4 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | External Battery Wake Connections Model C60 MicroTurbine
