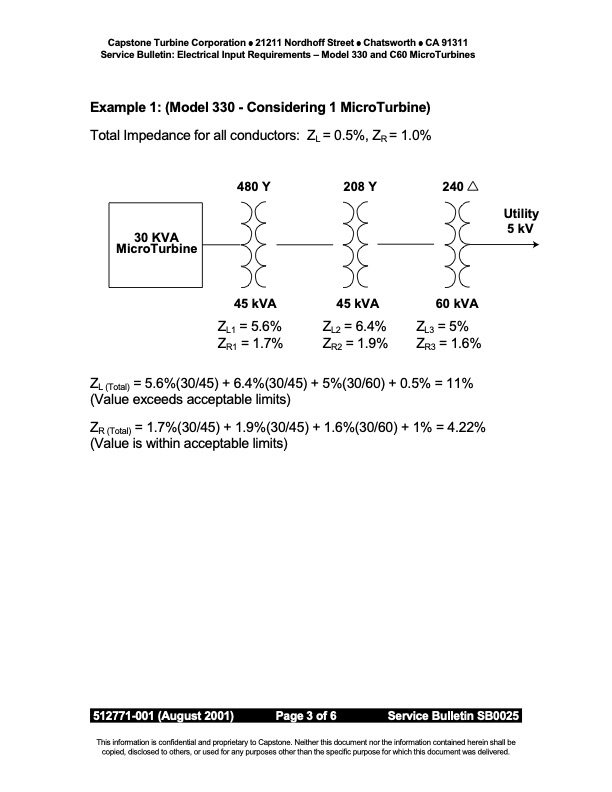

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 Service Bulletin: Electrical Input Requirements – Model 330 and C60 MicroTurbines Example 1: (Model 330 - Considering 1 MicroTurbine) Total Impedance for all conductors: ZL = 0.5%, ZR = 1.0% 480 Y 208 Y 45 kVA 45 kVA 240 60 kVA Utility 5 kV 30 KVA MicroTurbine ZL1 =5.6% ZL2 =6.4% ZL3 =5% ZR1 = 1.7% ZR2 = 1.9% ZR3 = 1.6% ZL (Total) = 5.6%(30/45) + 6.4%(30/45) + 5%(30/60) + 0.5% = 11% (Value exceeds acceptable limits) ZR (Total) = 1.7%(30/45) + 1.9%(30/45) + 1.6%(30/60) + 1% = 4.22% (Value is within acceptable limits) 512771-001 (August 2001) Page 3 of 6 Service Bulletin SB0025. This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Electrical Input Requirements Model 330 and Capstone 60 MicroTurbines
