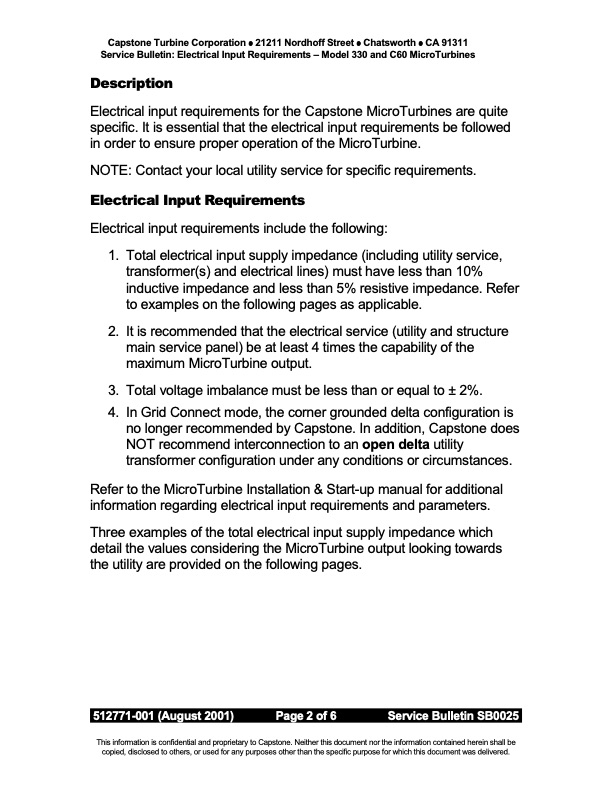

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 Service Bulletin: Electrical Input Requirements – Model 330 and C60 MicroTurbines Description Electrical input requirements for the Capstone MicroTurbines are quite specific. It is essential that the electrical input requirements be followed in order to ensure proper operation of the MicroTurbine. NOTE: Contact your local utility service for specific requirements. Electrical Input Requirements Electrical input requirements include the following: 1. Total electrical input supply impedance (including utility service, transformer(s) and electrical lines) must have less than 10% inductive impedance and less than 5% resistive impedance. Refer to examples on the following pages as applicable. 2. It is recommended that the electrical service (utility and structure main service panel) be at least 4 times the capability of the maximum MicroTurbine output. 3. Total voltage imbalance must be less than or equal to ± 2%. 4. In Grid Connect mode, the corner grounded delta configuration is no longer recommended by Capstone. In addition, Capstone does NOT recommend interconnection to an open delta utility transformer configuration under any conditions or circumstances. Refer to the MicroTurbine Installation & Start-up manual for additional information regarding electrical input requirements and parameters. Three examples of the total electrical input supply impedance which detail the values considering the MicroTurbine output looking towards the utility are provided on the following pages. 512771-001 (August 2001) Page 2 of 6 Service Bulletin SB0025. This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Electrical Input Requirements Model 330 and Capstone 60 MicroTurbines
