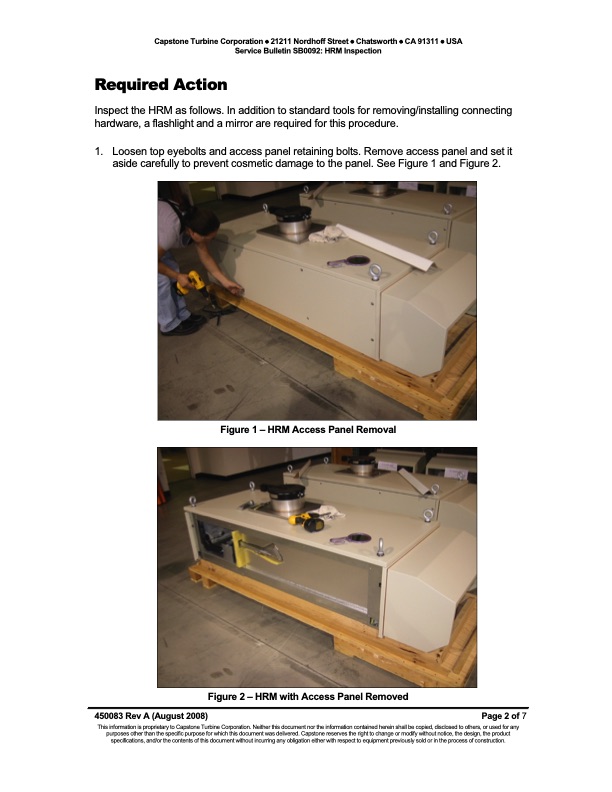

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Service Bulletin SB0092: HRM Inspection Required Action Inspect the HRM as follows. In addition to standard tools for removing/installing connecting hardware, a flashlight and a mirror are required for this procedure. 1. Loosen top eyebolts and access panel retaining bolts. Remove access panel and set it aside carefully to prevent cosmetic damage to the panel. See Figure 1 and Figure 2. Figure 1 – HRM Access Panel Removal Figure 2 – HRM with Access Panel Removed 450083 Rev A (August 2008) Page 2 of 7 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone Technical Support HRM Inspection
