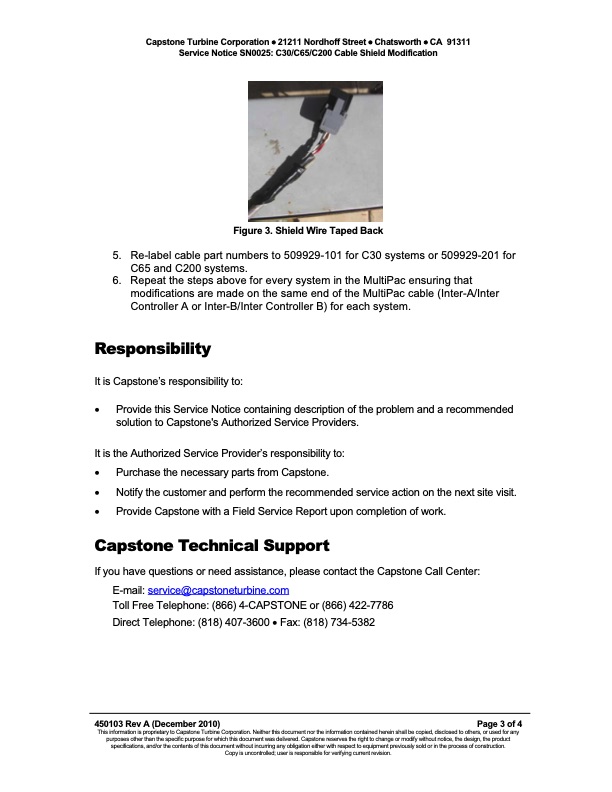

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 Service Notice SN0025: C30/C65/C200 Cable Shield Modification Figure 3. Shield Wire Taped Back 5. Re-label cable part numbers to 509929-101 for C30 systems or 509929-201 for C65 and C200 systems. 6. Repeat the steps above for every system in the MultiPac ensuring that modifications are made on the same end of the MultiPac cable (Inter-A/Inter Controller A or Inter-B/Inter Controller B) for each system. Responsibility It is Capstone’s responsibility to: Provide this Service Notice containing description of the problem and a recommended solution to Capstone's Authorized Service Providers. It is the Authorized Service Provider’s responsibility to: Purchase the necessary parts from Capstone. Notify the customer and perform the recommended service action on the next site visit. Provide Capstone with a Field Service Report upon completion of work. Capstone Technical Support If you have questions or need assistance, please contact the Capstone Call Center: E-mail: service@capstoneturbine.com Toll Free Telephone: (866) 4-CAPSTONE or (866) 422-7786 Direct Telephone: (818) 407-3600 Fax: (818) 734-5382 450103 Rev A (December 2010) Page 3 of 4 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Copy is uncontrolled; user is responsible for verifying current revision.PDF Image | Capstone Technical Support C30/C65/C200 Cable Shield Modification
PDF Search Title:
Capstone Technical Support C30/C65/C200 Cable Shield ModificationOriginal File Name Searched:
SN0025_C30_C65_C200_Cable_Shield_Mod.pdfDIY PDF Search: Google It | Yahoo | Bing
