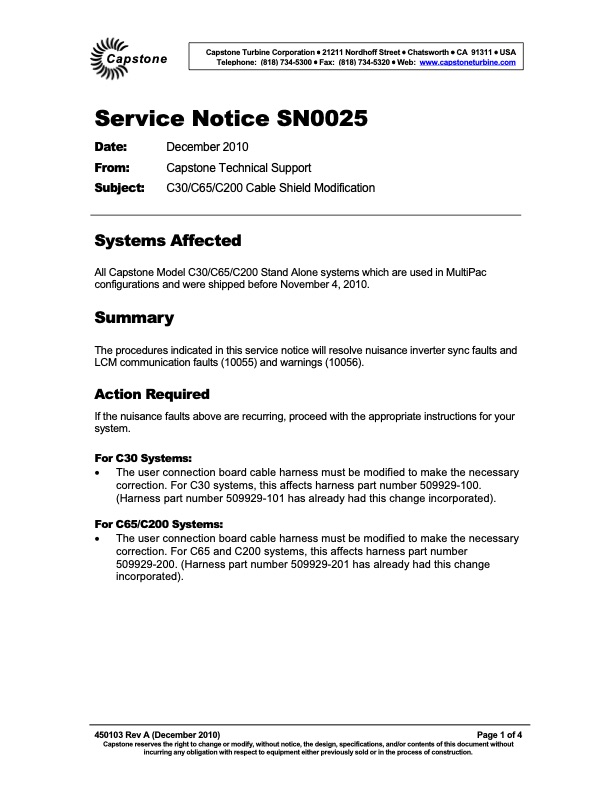

Capstone Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Telephone: (818) 734-5300 Fax: (818) 734-5320 Web: www.capstoneturbine.com Service Notice SN0025 Date: From: Subject: December 2010 Capstone Technical Support C30/C65/C200 Cable Shield Modification Systems Affected All Capstone Model C30/C65/C200 Stand Alone systems which are used in MultiPac configurations and were shipped before November 4, 2010. Summary The procedures indicated in this service notice will resolve nuisance inverter sync faults and LCM communication faults (10055) and warnings (10056). Action Required If the nuisance faults above are recurring, proceed with the appropriate instructions for your system. For C30 Systems: The user connection board cable harness must be modified to make the necessary correction. For C30 systems, this affects harness part number 509929-100. (Harness part number 509929-101 has already had this change incorporated). For C65/C200 Systems: The user connection board cable harness must be modified to make the necessary correction. For C65 and C200 systems, this affects harness part number 509929-200. (Harness part number 509929-201 has already had this change incorporated). 450103 Rev A (December 2010) Page 1 of 4 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation with respect to equipment either previously sold or in the process of construction.PDF Image | Capstone Technical Support C30/C65/C200 Cable Shield Modification
