PDF Publication Title:
Text from PDF Page: 002

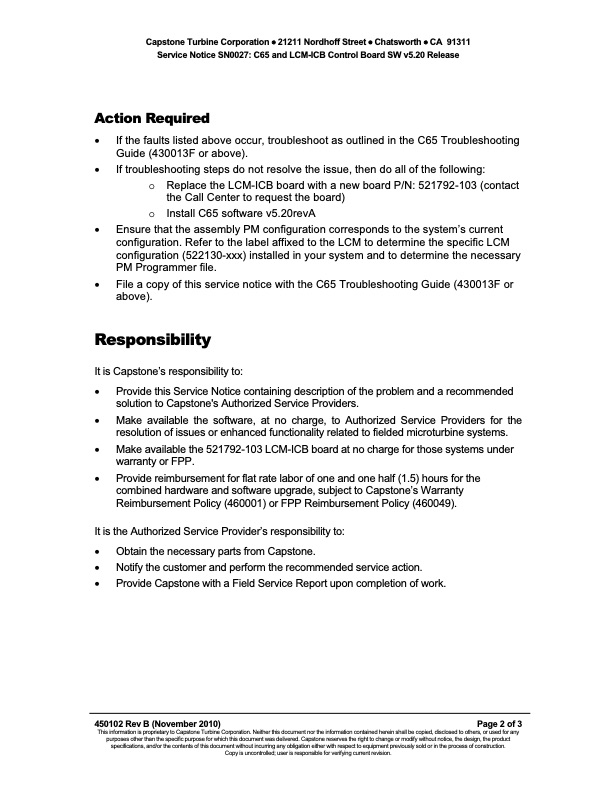

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 Service Notice SN0027: C65 and LCM-ICB Control Board SW v5.20 Release Action Required If the faults listed above occur, troubleshoot as outlined in the C65 Troubleshooting Guide (430013F or above). If troubleshooting steps do not resolve the issue, then do all of the following: o ReplacetheLCM-ICBboardwithanewboardP/N:521792-103(contact the Call Center to request the board) o InstallC65softwarev5.20revA Ensure that the assembly PM configuration corresponds to the system’s current configuration. Refer to the label affixed to the LCM to determine the specific LCM configuration (522130-xxx) installed in your system and to determine the necessary PM Programmer file. File a copy of this service notice with the C65 Troubleshooting Guide (430013F or above). Responsibility It is Capstone’s responsibility to: Provide this Service Notice containing description of the problem and a recommended solution to Capstone's Authorized Service Providers. Make available the software, at no charge, to Authorized Service Providers for the resolution of issues or enhanced functionality related to fielded microturbine systems. Make available the 521792-103 LCM-ICB board at no charge for those systems under warranty or FPP. Provide reimbursement for flat rate labor of one and one half (1.5) hours for the combined hardware and software upgrade, subject to Capstone’s Warranty Reimbursement Policy (460001) or FPP Reimbursement Policy (460049). It is the Authorized Service Provider’s responsibility to: Obtain the necessary parts from Capstone. Notify the customer and perform the recommended service action. Provide Capstone with a Field Service Report upon completion of work. 450102 Rev B (November 2010) Page 2 of 3 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Copy is uncontrolled; user is responsible for verifying current revision.PDF Image | C65 and LCM-ICB Control Board SW v5.20 Release
PDF Search Title:
C65 and LCM-ICB Control Board SW v5.20 ReleaseOriginal File Name Searched:
SN0027_C65_and_LCM-ICB.pdfDIY PDF Search: Google It | Yahoo | Bing
