PDF Publication Title:
Text from PDF Page: 001

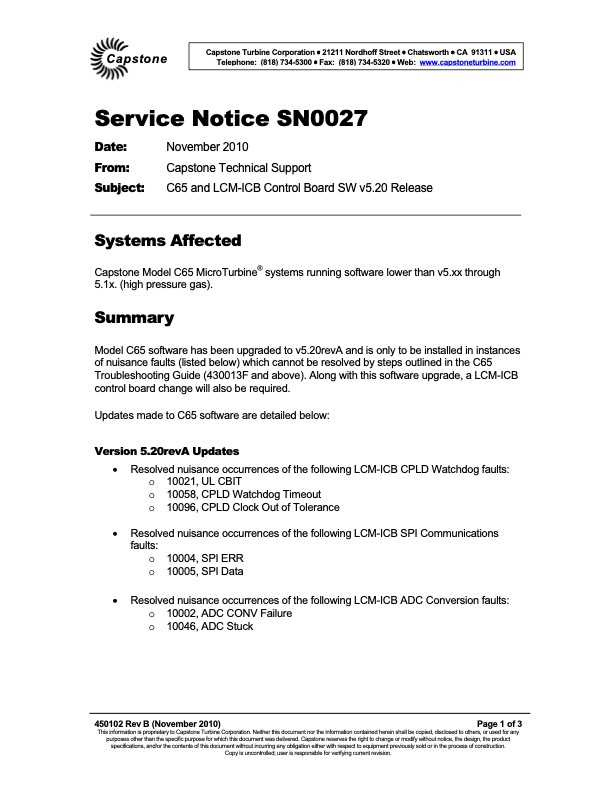

Capstone Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Telephone: (818) 734-5300 Fax: (818) 734-5320 Web: www.capstoneturbine.com Service Notice SN0027 Date: From: Subject: November 2010 Capstone Technical Support C65 and LCM-ICB Control Board SW v5.20 Release Systems Affected Capstone Model C65 MicroTurbine® systems running software lower than v5.xx through 5.1x. (high pressure gas). Summary Model C65 software has been upgraded to v5.20revA and is only to be installed in instances of nuisance faults (listed below) which cannot be resolved by steps outlined in the C65 Troubleshooting Guide (430013F and above). Along with this software upgrade, a LCM-ICB control board change will also be required. Updates made to C65 software are detailed below: Version 5.20revA Updates Resolved nuisance occurrences of the following LCM-ICB CPLD Watchdog faults: o 10021,ULCBIT o 10058,CPLDWatchdogTimeout o 10096,CPLDClockOutofTolerance Resolved nuisance occurrences of the following LCM-ICB SPI Communications faults: o 10004,SPIERR o 10005,SPIData Resolved nuisance occurrences of the following LCM-ICB ADC Conversion faults: o 10002,ADCCONVFailure o 10046,ADCStuck 450102 Rev B (November 2010) Page 1 of 3 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Copy is uncontrolled; user is responsible for verifying current revision.PDF Image | C65 and LCM-ICB Control Board SW v5.20 Release
PDF Search Title:
C65 and LCM-ICB Control Board SW v5.20 ReleaseOriginal File Name Searched:
SN0027_C65_and_LCM-ICB.pdfDIY PDF Search: Google It | Yahoo | Bing
