PDF Publication Title:
Text from PDF Page: 001

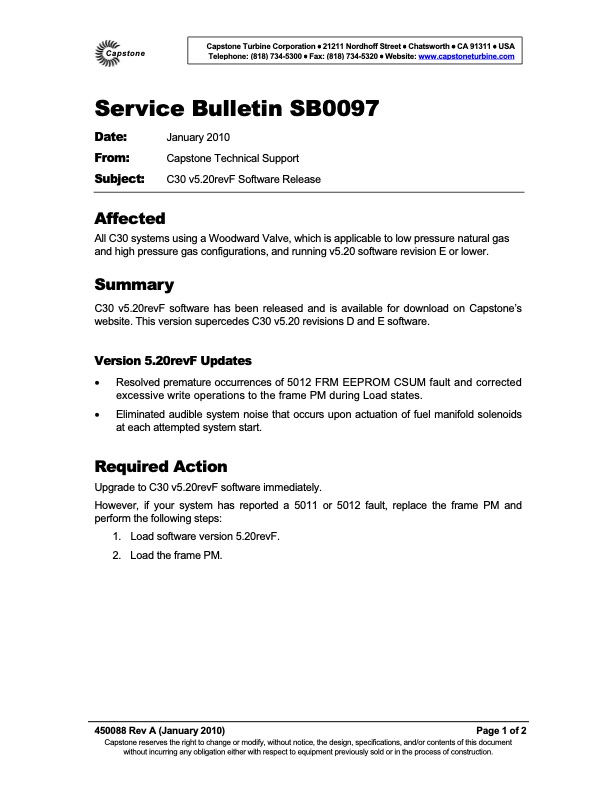

Capstone Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Telephone: (818) 734-5300 Fax: (818) 734-5320 Website: www.capstoneturbine.com Service Bulletin SB0097 Date: From: Subject: Affected All C30 systems using a Woodward Valve, which is applicable to low pressure natural gas and high pressure gas configurations, and running v5.20 software revision E or lower. Summary C30 v5.20revF software has been released and is available for download on Capstone’s website. This version supercedes C30 v5.20 revisions D and E software. Version 5.20revF Updates Resolved premature occurrences of 5012 FRM EEPROM CSUM fault and corrected excessive write operations to the frame PM during Load states. Eliminated audible system noise that occurs upon actuation of fuel manifold solenoids at each attempted system start. Required Action Upgrade to C30 v5.20revF software immediately. However, if your system has reported a 5011 or 5012 fault, replace the frame PM and perform the following steps: 1. Load software version 5.20revF. 2. Load the frame PM. January 2010 Capstone Technical Support C30 v5.20revF Software Release 450088 Rev A (January 2010) Page 1 of 2 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | C30 v5.20revF Software Release
PDF Search Title:
C30 v5.20revF Software ReleaseOriginal File Name Searched:
SB0097_C30_v5.20F_Software_Release.pdfDIY PDF Search: Google It | Yahoo | Bing
